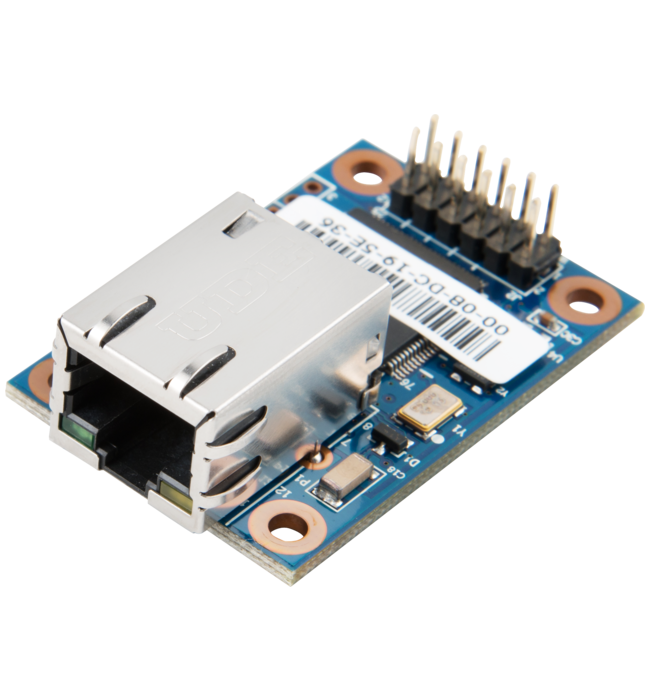

WIZ107SR-TTL
€25.94
€21.80
Delivery Time
5 - 7 d

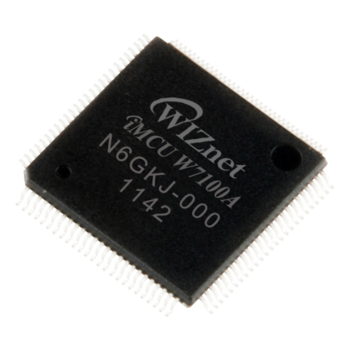

one port TTL level Serial-to-Ethernet plug in Module with 4in1 Internet MCU 7100A-100 and RJ45.
Product Description
WIZ107SR is the compact sized serial to Ethernet module using W7100A, WIZnet iMCU, 8051. WIZ107SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to a serial equipment.
It complies with industrial temperature standard and supports the serial interface of RS-232.
Features
- Serial to Ethernet Module based on W7100A
- Pin-header type & RJ-45 mounted module
- Serial signals : TXD, RXD, RTS, CTS, GND, (RS-232 transceiver optionally built-in)
- Support the configuration method of AT command & Configuration tool program
- Support password function for the security
- 10/100Mbps Ethernet & Max.230kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 30 mm x 45 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | 8051 |
| Core speed | 96 MHz |
| voltage regulator (LDO) | No |
