WIZ107SR-RS232-EVB
€46.41
€39.00
Delivery Time
5 - 7 d

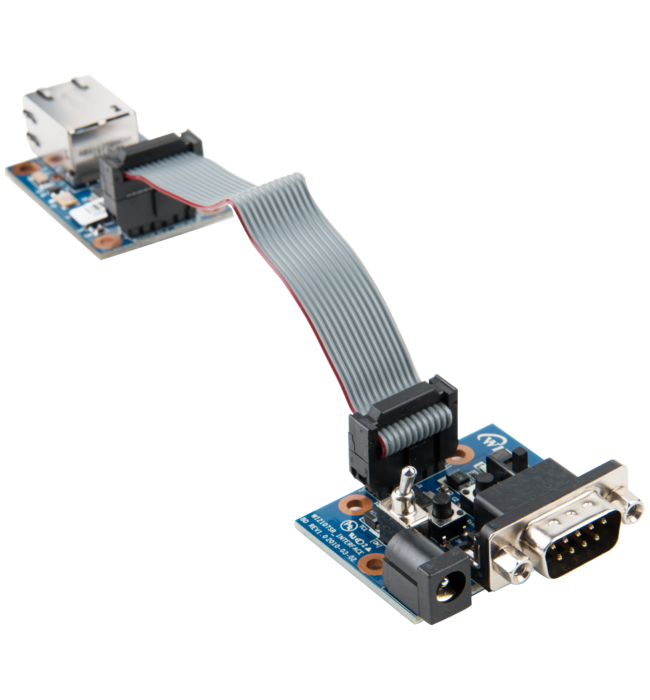

Evaluation Board for the Serial-to-Ethernet module WIZ107SR-RS232
Product Description
Evaluation Board for the Serial-to-Ethernet module WIZ107SR incl. one module WIZ107SR-RS232. RS232 level interface test EVB for WIZ107SR-TTL and -RS232.
Feature
- Connect with the Serial Device directly
- Adding Network Function Simply and Quickly
- Providing Firmware Customization
- High System Stability and Reliability by using W7100A Hardware Chip
- Supports Serial Configuration &ndash with Simple and Easy command
- Supports Password for the Security
- Easy & Powerful Configuration Tool Program
- 10/100 Ethernet Interface and max 230Kbps Serial Interface
- RoHS Compliant
Related Links
WIZnet Documentation
WIZ107SR-RS232-EVB product page on wiznet.io
| Manufacturer | WIZnet |
|---|---|
| Dimension | 35 mm x 35 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | 8051 |
| ROM | 64 kB + 255 B |
| RAM | 64 kB |
| voltage regulator (LDO) | Yes |
