W7100A-S2E-64

€9.52 €8.00
Delivery Time
5 - 7 d

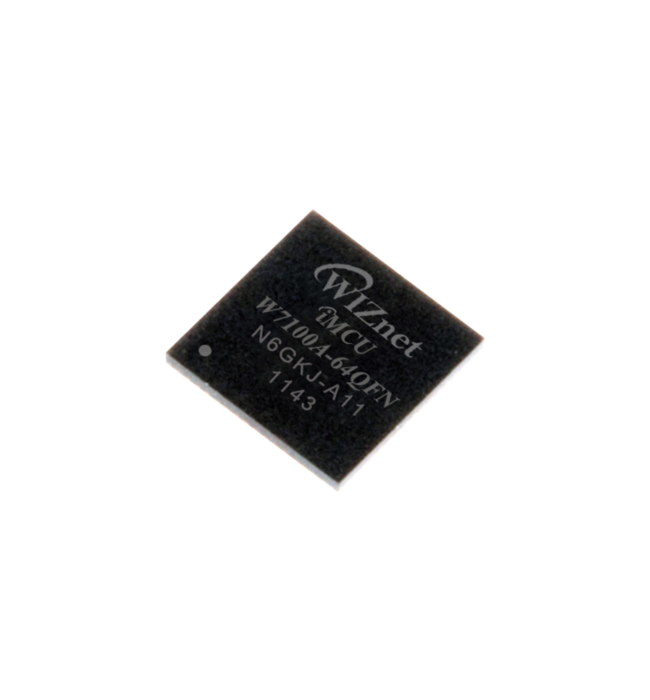

pre-programmed W7100A - Internet MCU Serial-to-Ethernet - S2E - Chip

Product Description

W7100S2E is a highly integrated SoC in which ‘Serial to Ethernet’ application firmware is programmed. It comes with licensed networking firmware of WIZ107SR or WIZ108SR module, which is already deployed in millions of network devices.

Features

  • Highly integrated SoC in which “Serial to Ethernet” application firmware is programmed
  • Provides market-proven ‘Serial to Ethernet’ firmware of WIZ107SR or WIZ108SR
  • Includes MAC address
  • Provides hardware reference design guide : Reference hardware schematic, Gerber files of WIZ107SR or WIZ108SR, Part list of WIZ107SR or WIZ108SR
  • Supports firmware customization
  • Software utilities for easy configuration : User friendly configuration tool program & its source code,  WIZ VSP (Virtual COM port Program)

Related Links

WIZnet Documentation

WIZ7100S2E product page on wiznet.io

More Information
Manufacturer WIZnet
Dimension 9 mm x 9 mm
Ethernet I/F PHY
Operating Temperature -40 °C to +85 °C
Auto Negotiation Yes
Wake on Lan No
Power Down Mode No
Protocol IPv4
MCU core 8051
