SoC with 8051 core + 64k RAM and Flash + TCP/IP + MAC + PHY

Product Description

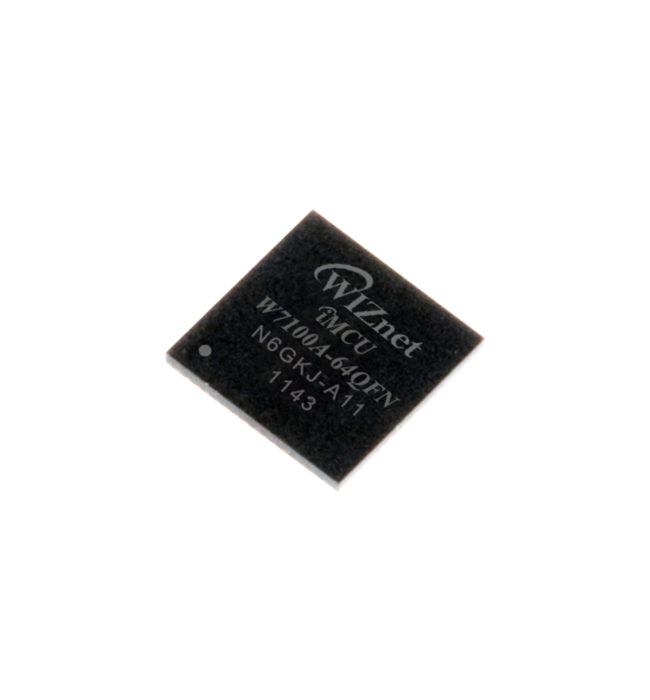

64 pins version(64QFN 10x10mm)

iMCU W7100A is the one-chip solution which integrates an 8051 compatible micro-controller, 64KB SRAM and hardwired TCP/IP core for high performance and easy development. The TCP/IP core is a market-proven hardwired TCP/IP stack with an integrated Ethernet MAC & PHY. The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been used in various applications for years.


  • Industrial standard 8051
  • Pipelined architecture 4~5 times faster than other 8051
  • 2 data pointers for fast memory block processing
  • 64KByte Flash, 64Kbyte SRAM, 2Kbyte Boot ROM, 255Byte Data Flash
  • External 11.0592MHz operation frequency for internal PLL logic
  • Interrupt Controller : 2 priority levels / 4 external interrupt sources / 1 watchdog interrupt
  • Four 8 bit I/O ports
  • Three timers/counters
  • Full Duplex UART
  • Programmable Watchdog Timer
  • Hardwired TCP/IP protocols
  • Un-attackable hardware network engine for preventing network attacks such as flooding, spoofing, injection
  • 8 Independent hardware socket
  • Internal 32Kbytes memory for TCP/IP packet processing
  • 10BaseT / 100Base TX Ethernet PHY Embedded
  • Support Auto-Negotiation (Full & Half Duplex, 10 & 100 Based)
  • Support Auto-MDIX
  • 3V Operation with 5V I/O signal tolerance
  • 64QFN (10x10mm) Lead Free Package

Related Links

WIZnet Documentation

W7100A-64 product page on wiznet.io

More Information
Manufacturer WIZnet
Dimension 9 mm x 9 mm
Ethernet I/F PHY
Operating Temperature -40 °C to +80 °C
Network sockets count 8
internal DPRAM buffer memory 32 kB
RAM 64 kB
ROM 64 kB + 255 B
Protocol IPv4
Auto Negotiation Yes
Wake on Lan Yes
Power Down Mode Yes
MCU core 8051
Core speed 8x PLL = 88 MHz
Boot ROM 2 kB
I/O ports 4x 8bit I/O
Timer / Counter 3 timer/counters
Debug I/F DoCD & compatible debugger
