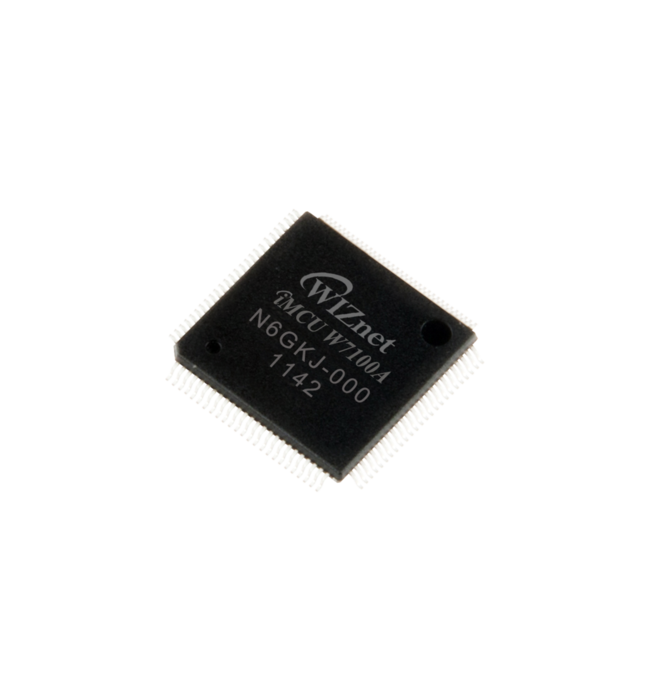

W7100A-100

This product has reached its end of life - parts available until stock is depleted.

Product Description

100 pins version(100LQFP 13x13mm)

iMCU W7100A is the one-chip solution which integrates an 8051 compatible micro-controller, 64KB SRAM and hardwired TCP/IP core for high performance and easy development. The TCP/IP core is a market-proven hardwired TCP/IP stack with an integrated Ethernet MAC & PHY. The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been used in various applications for years.

Features

• Industrial standard 8051

• Pipelined architecture 4~5 times faster than other 8051

• 2 data pointers for fast memory block processing

• 64KByte Flash, 64Kbyte SRAM, 2Kbyte Boot ROM, 255Byte Data Flash

• External 11.0592MHz operation frequency for internal PLL logic

• Interrupt Controller : 2 priority levels / 4 external interrupt sources / 1 watchdog interrupt

• Four 8 bit I/O ports

• Three timers/counters

• Full Duplex UART

• Programmable Watchdog Timer

• Hardwired TCP/IP protocols

• TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE

• Un-attackable hardware network engine for preventing network attacks such as flooding, spoofing, injection

• 8 Independent hardware socket

• Internal 32Kbytes memory for TCP/IP packet processing

• 10BaseT / 100Base TX Ethernet PHY Embedded

• Support Auto-Negotiation (Full & Half Duplex, 10 & 100 Based)

• Support Auto-MDIX

• 3V Operation with 5V I/O signal tolerance

• 100LQFP (13x13mm)
