W7100A-S2E-100
€9.52
€8.00
Delivery Time
5 - 7 d
pre-programmed W7100A-100 with Serial-to-Ethernet FW.
Product Description

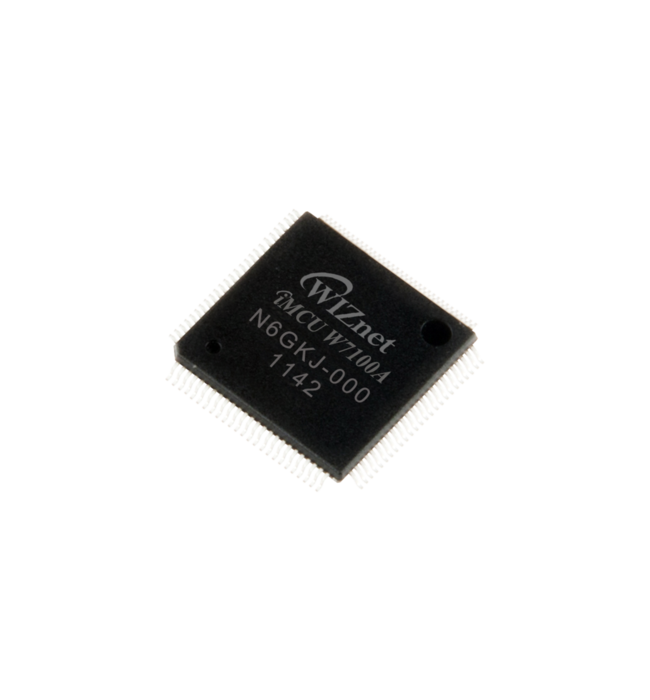

W7100S2E is a highly integrated SoC in which ‘Serial to Ethernet’ application firmware is programmed. It comes with licensed networking firmware of WIZ107SR or WIZ108SR module, which is already deployed in millions of network devices.
Features
- Highly integrated SoC in which “Serial to Ethernet” application firmware is programmed
- Provides market-proven ‘Serial to Ethernet’ firmware of WIZ107SR or WIZ108SR
- Includes MAC address
- Provides hardware reference design guide : Reference hardware schematic, Gerber files of WIZ107SR or WIZ108SR, Part list of WIZ107SR or WIZ108SR
- Supports firmware customization
- Software utilities for easy configuration : User friendly configuration tool program & its source code, WIZ VSP (Virtual COM port Program)
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 14 mm x 14 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +80 °C |
| Auto Negotiation | Yes |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | 8051 |
