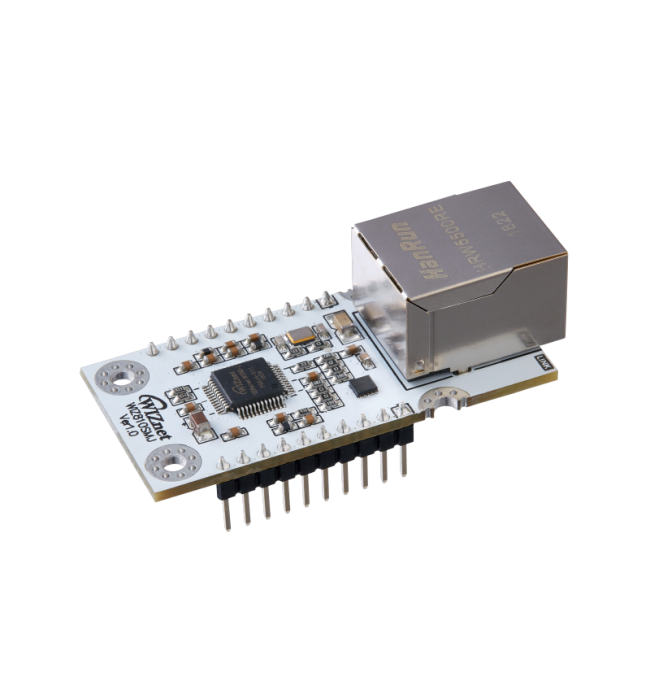

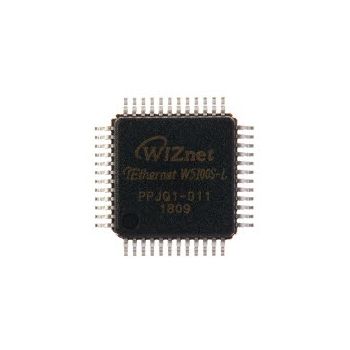

WIZ810SMJ is a compact size network module that includes a W5100S (TCP/IP hardwired chip and PHY embedded), a transformer and RJ45

Compact size network module based on the W5100S

Product Description

WIZ810SMJ is the internet offload network module that includes W5100S (TCP/IP hardwired chip with PHY), MAG-JACK (RJ45 with X’FMR) and other glue logics. It can be used as a component and no effort is required to interface W5100S and Transformer. The WIZ810SMJ is an ideal option for users who want to develop their Internet enabling systems rapidly.


  • Supports Hardwired Internet protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
  • Supports 4 independent SOCKETs simultaneously
  • Supports half/full duplex operation
  • Support SOCKET-less commands: ARP-Request, PING-Request
  • Support Ethernet Power down mode & Main Clock gating for power save
  • Support Wake on LAN over UDP
  • Supports high speed SPI Interface (SPI mode 0/3)
  • Internal 16Kbytes Memory for TX/RX Buffers
  • 10BaseT/100BaseTX Ethernet PHY Integrated
  • Support Auto Negotiation (Full and half duplex, 10 and 100-based)
  • Support Auto-MDIX in Auto-Negotiation mode
  • 3.3V operation with 5V I/O signal tolerance

Related Links

WIZ810SMJ product page on wiznet.io

WIZ810SMJ documentation in the wizwiki.net wiki

More Information
Manufacturer WIZnet
Dimension 52 mm x 25 mm x 18 mm
Ethernet I/F PHY
Operating Temperature -40 °C to +85 °C
Operating Voltage 3.3 V
Functions 3-in-1, TCP/IP + MAC + PHY
internal DPRAM buffer memory 16 kB
Network sockets count 8
Package pin module
Protocol IPv4
MCU I/F 8 bit
PoE possible No
Related Chip/Module W5100S
Ethernet connector RJ45
pin pitch 2.54 mm
Ethernet Speed 10/100
