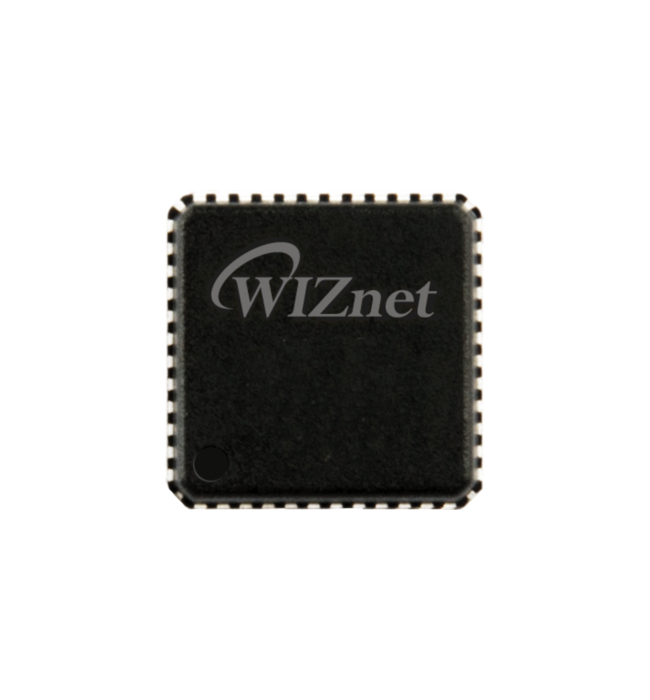

W5100S-Q

Product Description

Hardware TCP/IP Performance and Ease of Use to Low-Cost ‘IoT’ Applications

The W5100S is a Hardwired TCP/IP embedded Ethernet Controller that enables easier Internet Connection for embedded Systems using SPI (Serial Peripheral Interface) and Parallel Bus.

W5100S suits users in need of stable Internet Connectivity Best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC, and PHY. The implemented Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE which has been proven through various Applications over many years. W5100S uses a 16 Kbytes Internal Buffer as its Data Communication Memory.

By using W5100S, users can implement the Ethernet Application they need by using a simple socket Program instead of handling a complex Ethernet Controller. It is possible to use 4 independent hardware sockets simultaneously.

The W5100S SPI supports up to 70 MHz speed and the new efficient SPI Protocol, so users can implement High-Speed Network Communication. In order to reduce the power consumption of the system, W5100S provides a Power Down mode and can be enabled by Wake On Lan.

Information for users of the W5100: The new W5100S is not fully pin-to-pin compatible with the W5100, but the software compatibility is kept, hence the software for the W5100 can be used with the W5100S without any modification.

Features

• 48LQFP lead-free package (7x7mm, 0.5mm pitch)
• Host Interface: SPI (up to 70MHz, mode 0, 3) and Parallel System Bus with 2 Address signals and 8 Bits Data
• Unattackable hardware engine for preventing network attacks such as flooding, spoofing, injection
• 4 Independent hardware sockets simultaneously
• supports various Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
• Internal 16 Kbytes memory for TCP/IP packet processing
• socket-less commands possible: ARP request and ping requests
• 10BaseT / 100Base TX Auto Negotiable Ethernet PHY Embedded
• Auto-MDIX in auto-negotiation mode (Half/Full Duplex, 10/100 MBit/s speed)
• IP fragmentation not supported, ARP-cache table will not be stored permanently
• 3.3V operating voltage with 5V I/O signal tolerance
• LED outputs (full/half duplex, link, 10/100 speed, active)
• Reduced heat dissipation (W5500: 40℃ / other chips : 60-70℃)
• Efficient power operation: power down & main clock gating as well as wake-on LAN over UDP
