WIZ630io
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
Compact Ethernet network module with integrated MAG-JACK based on the W6300.
Product Description
Compact Ethernet network module with integrated MAG-JACK based on the W6300

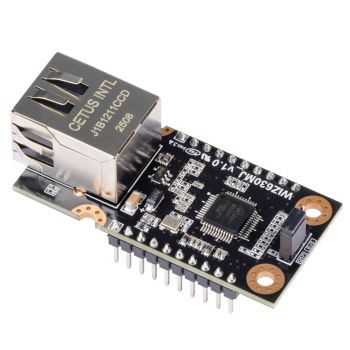

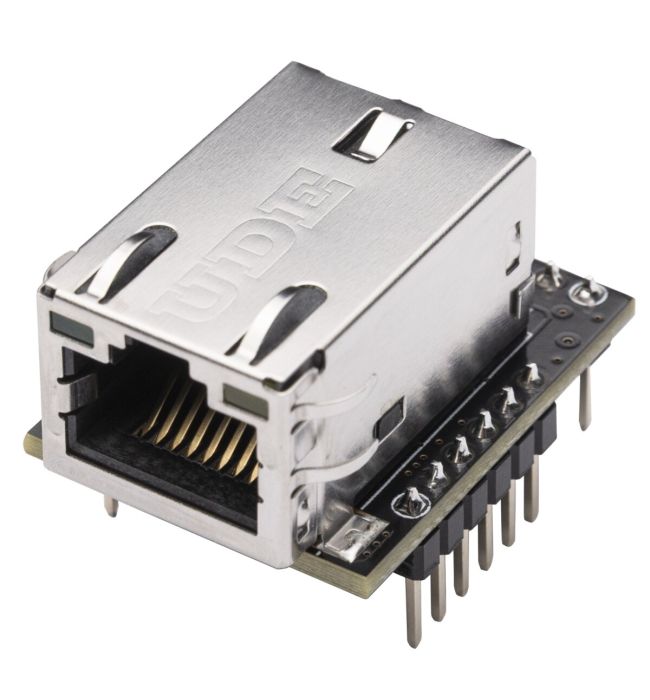

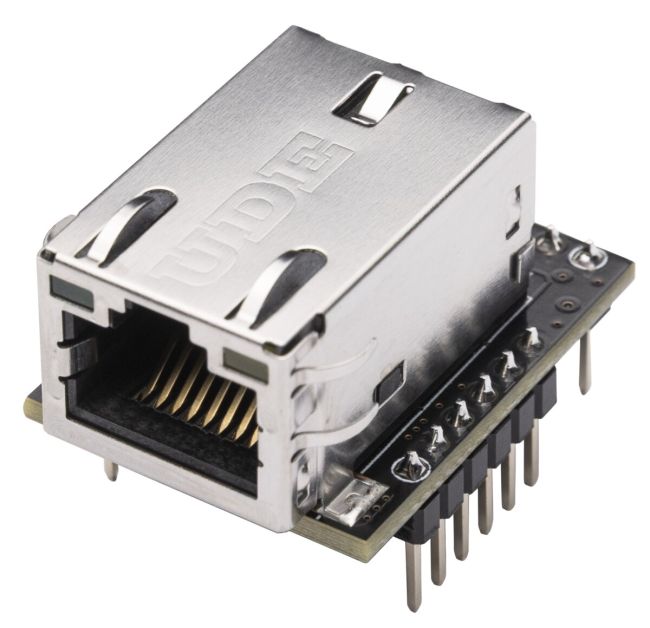

The WIZ630io is a compact Ethernet ioModule that combines the W6300 hardwired TCP/IP chip with built-in PHY and an integrated RJ45 MAG-JACK with transformer. Housed on a 29 × 23 mm PCB with 2 × 6 pin headers (2.54 mm pitch), it provides Ethernet networking for microcontrollers without external PHY or transformer circuitry. The W6300 implements a full hardware TCP/IP stack with IPv4/IPv6 dual stack support — covering TCP, UDP, ICMPv4/v6, ARP, NDP, IGMPv1/v2, MLDv1/v2 and PPPoE — with 8 independent hardware sockets and 64 kB total send/receive buffer. The module supports SPI and Quad-SPI host interfaces with system clocks up to 150 MHz, enabling Ethernet throughput beyond 80 Mbps. With an industrial operating temperature range of -40 °C to +85 °C, the WIZ630io is suited for embedded networking, IoT gateways and industrial connectivity applications requiring sustained high Ethernet throughput.
Feature
- Compact Ethernet ioModule with integrated MAG-JACK and transformer
- Based on WIZnet W6300 hardwired TCP/IP controller
- IPv4/IPv6 dual-stack support
- Hardware TCP/IP protocol support: TCP, UDP, ICMPv4, ICMPv6, ARP, NDP, IGMPv1/v2, MLDv1/v2, PPPoE
- 8 independent hardware sockets, 64 kB total send/receive buffer (4 kB TX/RX per socket)
- Supports SOCKET-less commands (ARP, ICMPv6 for DAD, NA, RS)
- SPI and Quad-SPI host interface, system clock up to 150 MHz, 80 Mbps+ throughput
- Supports 10BaseT / 10BaseTe / 100BaseTX Ethernet PHY
- Auto-Negotiation and Auto-MDIX
- Wake-on-LAN (UDP-based) and Ethernet PHY power-down with clock switching
- Network indicator LEDs: link, speed, duplex, activity
- 3.3 V power supply, I/O pins 5 V signal tolerant
- Compact dimensions: 29 × 23 mm, 2 × 6 header (2.54 mm pitch)
- Industrial operating temperature -40 °C to +85 °C
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 29 x 23 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | 3-in-1, TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| internal DPRAM buffer memory | 64 kB |
| Network sockets count | 8 |
| Package | pin module |
| Pin count module | 2 x 6 |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4, IPv6 |
| MCU I/F | 8 bit, SPI, QSPI |
| PoE possible | No |
| Related Chip/Module | W6300 |
| Ethernet connector | RJ45 |
| pin pitch | 2.54 mm |
| Ethernet Speed | 10/100 |
