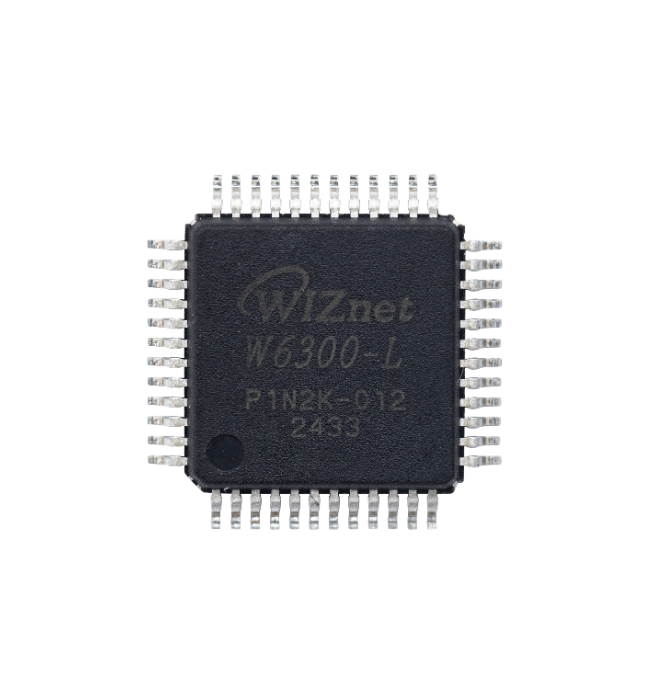

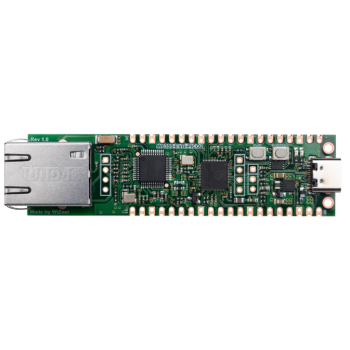

W6300-L

Product Description

The W6300 is a WIZnet 10/100 MBit/s TOE (TCP Offload Engine) Ethernet chip that combines the high-speed ethernet performance with Dual IPv4/IPv6 Hardware stack. To support the Ethernet performance up to 80 Mbps, it supports a 150 MHz system clock and a QSPI interface (including 4 Data lines). The W6300 supports a total SRAM size of 64 kB for 8 sockets, where each has 4 kB TX/RX buffer by default.

Features

• Supports hardwired TCP/IP protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
• Supports IPv4/IPv6 dual stack
• Supports 8 independent SOCKETs simultaneously with 64 kB memory
• Supports SOCKET-less commands: ARP, ICMPv6 (ARP, DAD, NA, RS) command for IPv6 auto-configuration & network monitoring (PING, PING6)
• Supports Ethernet PHY power down mode & system clock switching for power save
• Supports Wake on LAN over UDP
• Support Serial & Parallel Host Interface: High Speed QSPI(MODE 0/3), System Bus with 2 Address signal & 8bit Data
• Internal 32 kB memory each for TX/RX Buffers (total of 64 kB memory)
• 10BaseT/10BaseTe/100BaseTX Ethernet PHY integrated
• Supports auto negotiation (full/half duplex, 10 and 100-based)
• Supports auto-MDIX only on auto-negotiation mode
• Does not support IP fragmentation & jumbo packet
• 3V operation with 5V I/O signal tolerance
• Network indicator LEDs (full/half duplex, link, 10/100 speed, active)
• 48 Pin LQFP & QFN lead-free package (7x7mm, 0.5mm pitch)
