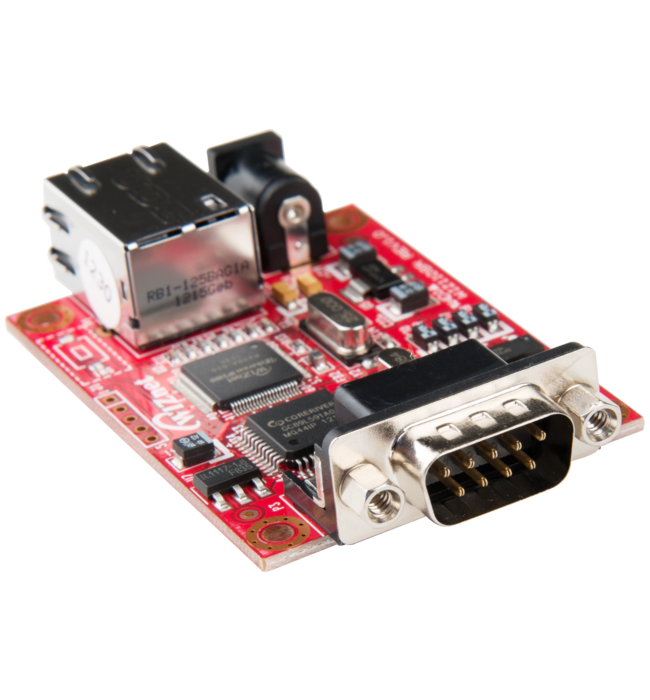

WIZ110SR
€29.75
€25.00
Delivery Time
5 - 7 d
one port RS232 level Serial-to-Ethernet module with 5100 hardwired TCP/IP chip
Product Description
WIZ110SR is the serial to Ethernet module using W5100 & 8051 MCU. WIZ110SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
Just by connecting LAN & Serial cable to the modules, you can easily add the ‘Serial to Ethernet’ function without additional hardware design.
Features
- Serial to Ethernet Module based on W5100 & 8051
- DB-9 & RJ-45 mounted module
- Serial signals : TXD, RXD, RTS, CTS, GND, RS-232 transceiver built-in
- Support the configuration method of AT command & Configuration tool program
- 10/100Mbps Ethernet & Max.230kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Related Links
| Manufacturer | WIZnet |
|---|---|
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | 8051 |
| Core speed | 96 MHz |
| voltage regulator (LDO) | Yes |
