W6300-EVB-Pico

        €11.19


        €9.40



Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
EVB based on RP2040 and W6300
Product Description

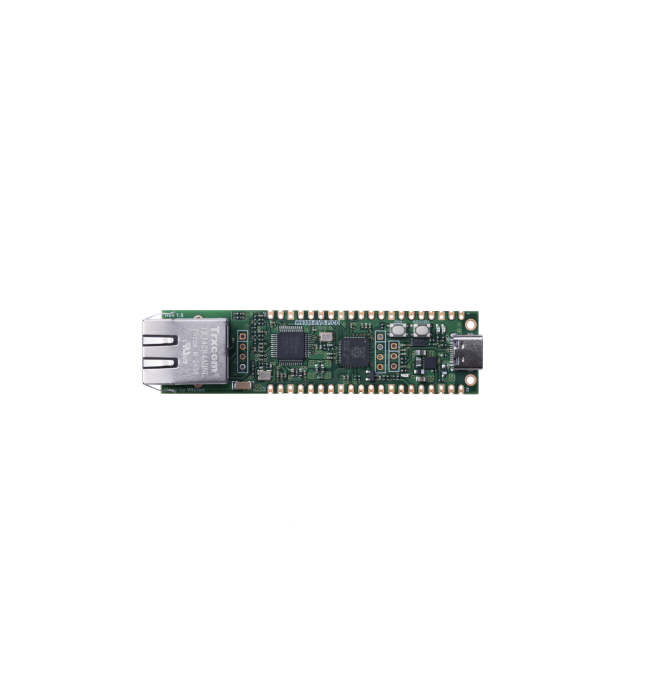

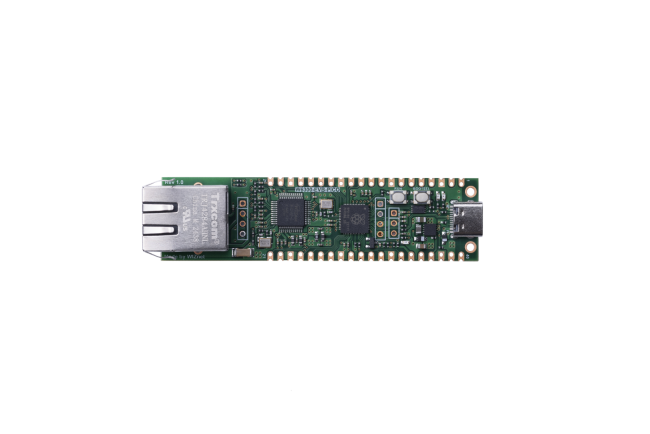

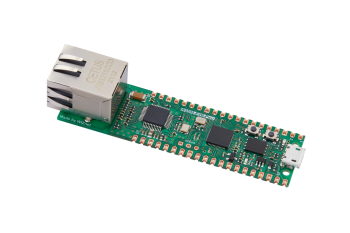

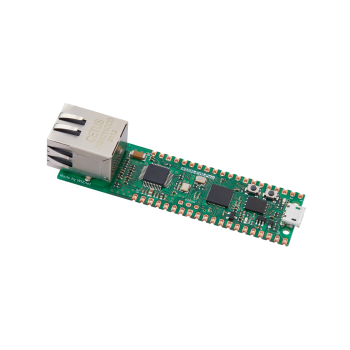

The W6300-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 and fully hardwired TCP/IP controller W6300 - and basically works the same as the Raspberry Pi Pico board but with additional Ethernet via W6100.
Features
- RP2040 microcontroller with 2MByte Flash
- Dual-core cortex M0+ at up to 133MHz
- 264kByte multi-bank high performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- High performance full-crossbar bus fabric
- 30 multi-function General Purpose IO (4 can be used for ADC)
- 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
- 12-bit 500ksps Analogue to Digital Converter (ADC)
- Various digital peripherals: 2 UART, 2 I2C, 2 SPI, 16 PWM channels, 1 Timer with 4 alarms, 1 Real Time Counter
- 2 Programmable IO (PIO) blocks, 8 state machines total
- Flexible, user-programmable high-speed IO
- Can emulate interfaces such as SD Card and VGA

- Includes W6300
- Supports Hardwired Internet Protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
- Supports 8 independent SOCKETs simultaneously with 32KB memory
- Internal 64 Kbytes Memory for TX/RX buffer
- SPI Interface

- C-Type USB port for power and data (and for reprogramming the Flash)
- 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
- 3-pin ARM Serial Wire Debug (SWD) port
- 10 / 100 Ethernet PHY embedded
- Supports Auto Negotiation, Full / Half Duplex, 10 / 100 Based
- Built-in RJ45 (RB1-125BAG1A)
Related Link
WIZnet Documentation
W6300-EVB-PICO product page on wiznet.io
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 80 x 21mm |
| Memory | 2 Mbit |
| Operating Temperature | -20 °C to +85 °C |
| Operating Voltage | 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 64 kB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4, IPv6 |
| Core speed | 2x 133 MHz |
| RAM | 264 kB |
| I/O ports | 30 GPIO |
| Related Chip/Module | W6300 |
| Ethernet Speed | 10/100 |
| Debug I/F | Yes |
