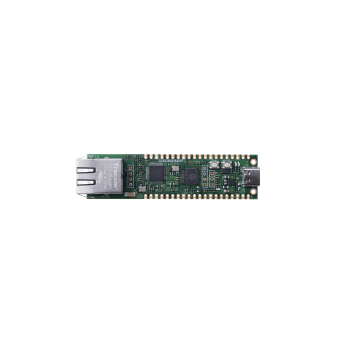

W6300-EVB-Pico2
€11.66
€9.80
Delivery Time: 5 - 7 d
EVB based on RP2350 and W6300
Product Description

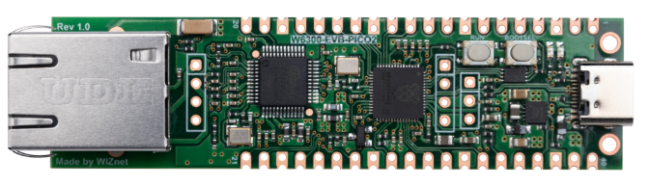

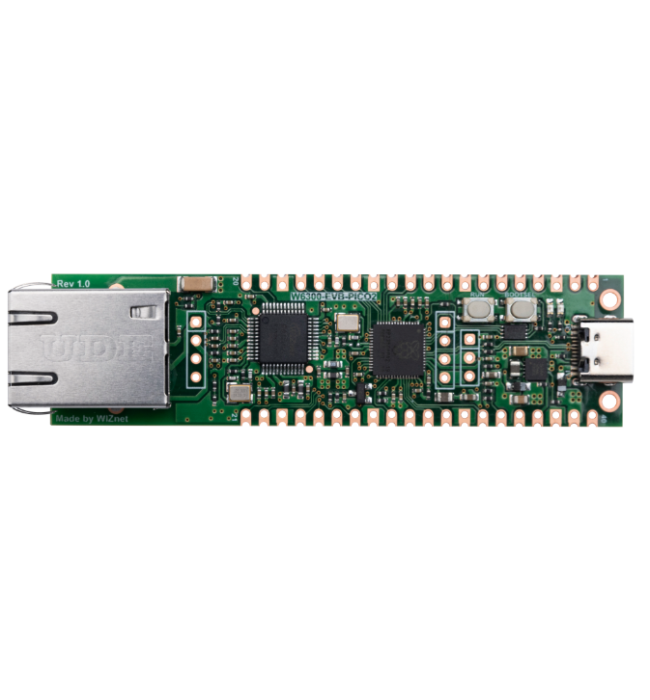

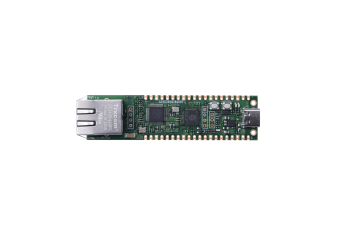

The W6300-EVB-Pico2 is a microcontroller evaluation board based on the Raspberry Pi RP2350 and fully hardwired TCP/IP controller W6300 – and basically works the same as the Raspberry Pi Pico board but with additional Ethernet via W6100.
Features
- RP2350 Microcontroller with Integrated 16Mbit Flash
- Symmetric dual Arm Cortex-M33 cores at up to 150MHz
- 520kByte multi-bank high performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- Enhanced performance full-crossbar bus fabric
- 48 multi-function General Purpose I/O
- 1.8 - 5 I/O Voltage
- Security Features
- One Time Programmable (OTP) Memory: Used for boot configuration and secure key storage.
- Secure Boot: Ensures that only authenticated software can run on the device, utilizing OTP for key verification.
- Arm TrustZone Technology: Provides hardware isolation between secure and non-secure software, enhancing security for critical applications.
- Analog and Digital Peripherals
- 12-bit 500ksps Analogue to Digital Converter (ADC)
- 2x UART, 2x I2C, 2x SPI, 16x PWM channels, 1x Timer with 4 alarms, 1x Real Time Counter
- 3x Programmable IO (PIO) blocks, 12 state machines total
- Flexible, user-programmable high-speed IO
- Can emulate interfaces such as SD Card and VGA

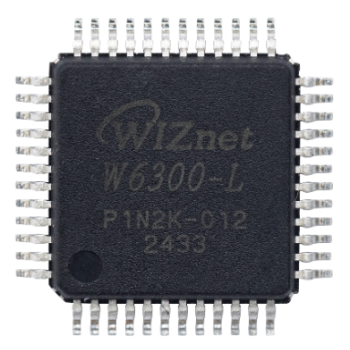

- W6300 Ethernet Controller
- Supports Hardwired Internet Protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
- Supports 8 Independent Hardware SOCKETs simultaneously
- Internal 64 Kbytes Memory for TX/RX Buffers
- SPI Interface
- Connectivity
- C-Type USB port for power and data (and for reprogramming the Flash)
- 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
- 3-pin ARM Serial Wire Debug (SWD) port
- Networking
- 10 / 100 Ethernet PHY embedded
- Supports Auto Negotiation, Full / Half Duplex, 10 / 100 Based
- Built-in RJ45 (RB1-125BAG1A)
- Power Supply
- Built-in Switch-mode DC-DC converter (replacing LDO for enhanced power efficiency)
Related Links
WIZnet Documentation
W6300-EVB-Pico2 product page on wiznet.io
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 80 x 21 mm |
| Memory | 16 Mbit Flash |
| Operating Temperature | -20 °C to +85 °C |
| Operating Voltage | 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| Core speed | 2 x 150 MHz |
| RAM | 520 kB |
| I/O ports | 48 GPIO |
| Related Chip/Module | W6300 |
| Ethernet Speed | 10/100 |
