WizFi630
€36.27
€30.48
Delivery Time: 2 - 3 d

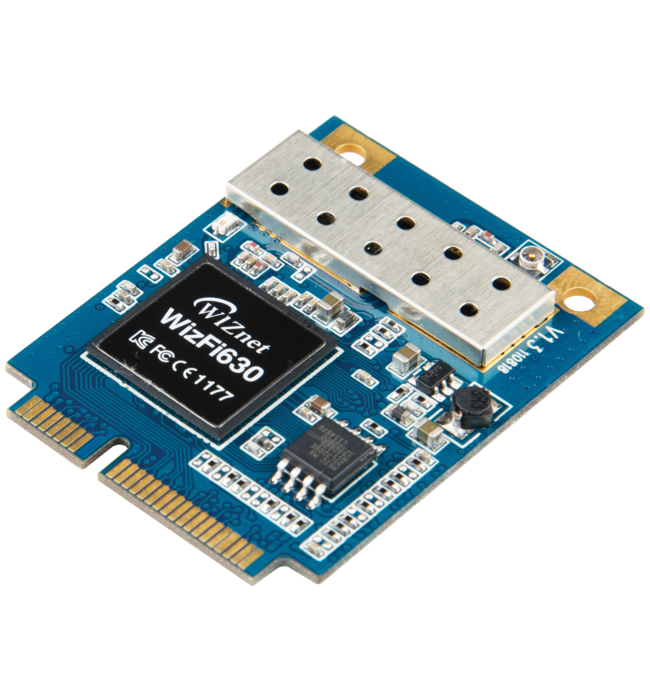

High Performance 802.11b/g/n Embedded WiFi Module
The WizFi630 is a high performance 802.11b/g/n embedded WiFi module. It is in the form factor of Mini PCI Express, which means standard Mini PCI Express connectors can be used for mounting the module on a PCB. But the pinout itself is different from Mini PCI Express, which means the module is not intended for use inside of a normal PC or notebook.
Please note that this module is only certified according to the ETSI EN 300 328 v1.7.1
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Booting Time | 15 sec |
| Dimension | 33 mm x 43 mm x 4.5mm |
| Ethernet I/F | 3 Ethernet Ports (10/100 Fast Ethernet) |
| TX Output Power | 14 – 17dBm ± 1.5dB |
| Power Consumption | Transmit+Receive = 675 mA |
| Operating Temperature | -10 °C to +70 °C |
| Protocol | IPv4 |
| voltage regulator (LDO) | No |
