W5I-BO-07
€3.26
€2.74
Delivery Time
5 - 7 d

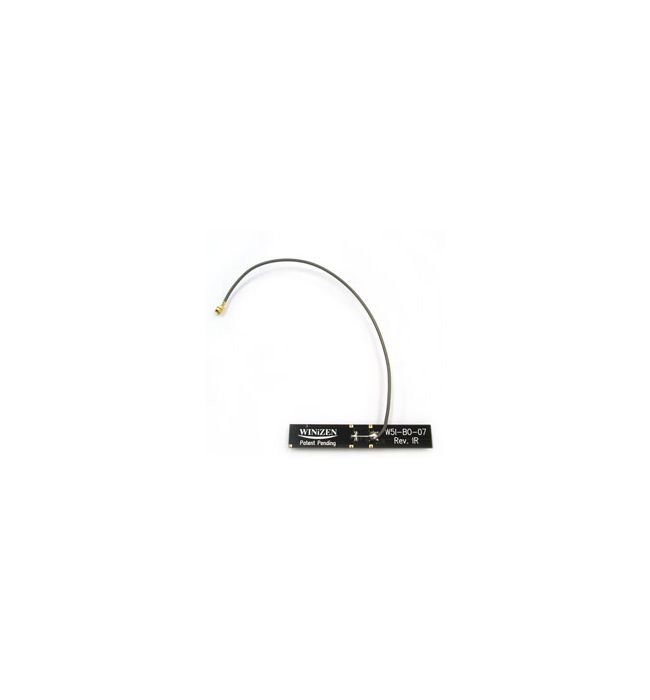

Antenna for WIZnet Wifi products with u.FL connector
Antenna for WIZnet Wifi products with u.Fl connector. The Antenna is a printed PCB, with a 130mm long cable. It has an adhesive tape on the back, so it can be easily mounted inside a housing.
| Dimension | 48 mm x 8 mm x 1 mm |
|---|---|
| Operating Temperature | -30 °C to +70 °C |
| Weight | 1.7 g |
| Band Width | 83.5 MHz |
| Input Impedance | 50 Ω |
| Radiatior Material | Copper |
| V.S.W.R (Min) | 1.9 : 1 |
| Gain (Max) | 2.5 ± 1 dBi |
| Frequency Range | 2400 - 2483.5 MHz |
| Connector | u.FL (I-PEX MHF) |
