WizFi310 Shield

Discontinued: The WizFi310 Shield is no longer produced. WIZnet discontinued it in June 2020. There is no successor. This page remains online for reference.

Product Description

WizFi310 WiFI Shield for Arduino and compatible platforms

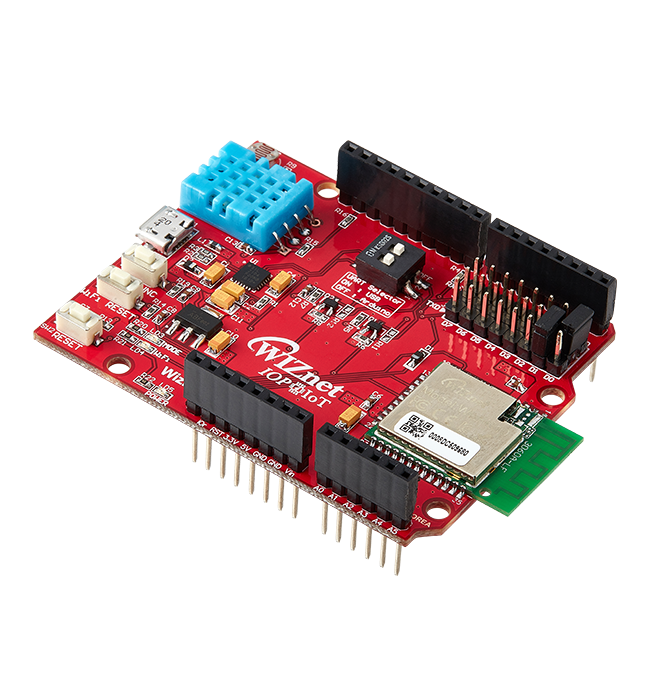

The WizFi310 Shield is a shield with built-in WizFi310 WiFi module for Arduino and compatible development boards. It contains the WizFi310 WiFi module, a temperature/humidity sensor and a light dependent resistor.

This module has reached its end of life. Please contact us in case you have any demand for it.

Features

• Single band 2.4GHz IEEE 802.11b/g/n
• 72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20MHz bandwidth
• 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
• Low power consumption & excellent power management performance extend battery life.
• Easy for integration into mobile and handheld device with flexible system configuration.
• Serial Interface: UART, max Rate: 921600 bps
• Wi-Fi Security (WEP, WPA/WPA2-PSK)
• L2 Switching
• OTA (Over The Air F/W Upgrade possible)
• Built-in UART to USB chip: CP2104-GM
• Micro USB B Type Connector
• UART Selector: J1, J2, J3
• 2.54mm Pin Header
• Temperature/Humidity sensor: DHT11
• LDR Sensor: GL5537
• Built-in Tact Switches: System Reset Switch: SW4, WiFi Reset Switch: SW3, WiFi Function Switch: SW2
• Built-in LED Indicators: D13 LED, WizFi310 MODE/WiFi LED, WizFi310 RXD/TXD LED
• Built-in DIP Switches: UART RXD/TXD Selector: SW1, Digital/Analog PIN Selector: SW5, UART RTS/CTS Selector: SW6
