WizFi310-EVB
€26.60
€22.35
Delivery Time
5 - 7 d

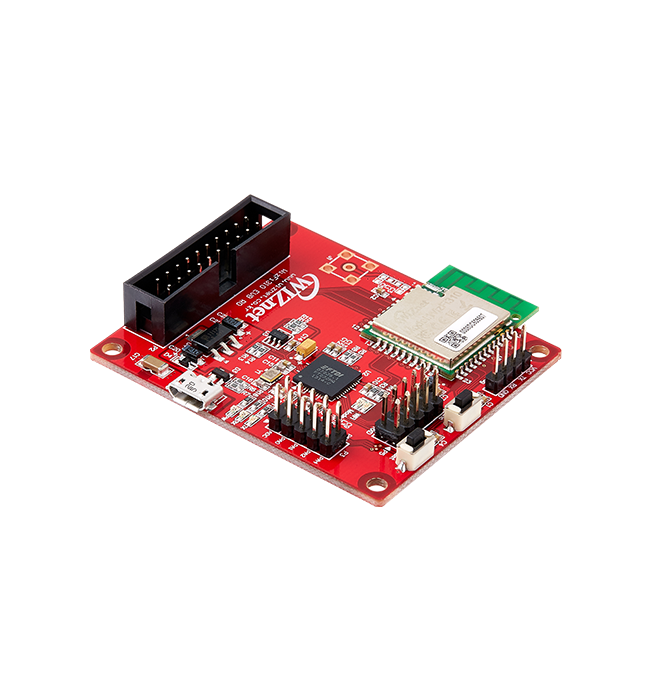

Evaluation Board for the WizFi310 Serial-to-WiFi module
Product Description
WizFi310 offers a quick, easy, and cost-effective way for device and appliance manufacturers to add WiFi capabilities to their products. WizFi310 Shield is a Shield with built-in WizFi310 WiFi module of WIZnet. So, it can be used to standalone like WizFi310 – EVB Board. WizFi310 Shield is Pin Compatible with Arduino, it can be used in Arduino, and it can be used in Arduino Pin Compatible development platform. It is also used on the WIZWiki Platform. In addition, an temprature/humidity sensor and an CDS sensor are built in.
Features
- Fast Evaluation for WizFi310 module
- Single band 2.4GHz IEEE 802.11b/g/n
- 72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20MHz bandwidth
- 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
- Low power consumption & excellent power management performance extend battery life.
- Easy for integration into mobile and handheld device with flexible system configuration.
- Serial Interface : UART
- UART Max Baud : 921600 bps
- Soft AP : Enough memory retention, Wi-Fi Security (WEP, WPA/WPA2PSK), L2 Switching
- OTA(Over The Air F/W Upgrading)
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 60 mm x 50 mm |
| Ethernet I/F | RJ45 |
| Operating Temperature | -20 °C to +85 °C |
| Auto Negotiation | No |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| voltage regulator (LDO) | Yes |
