WIZwiki-W7500

Product Description

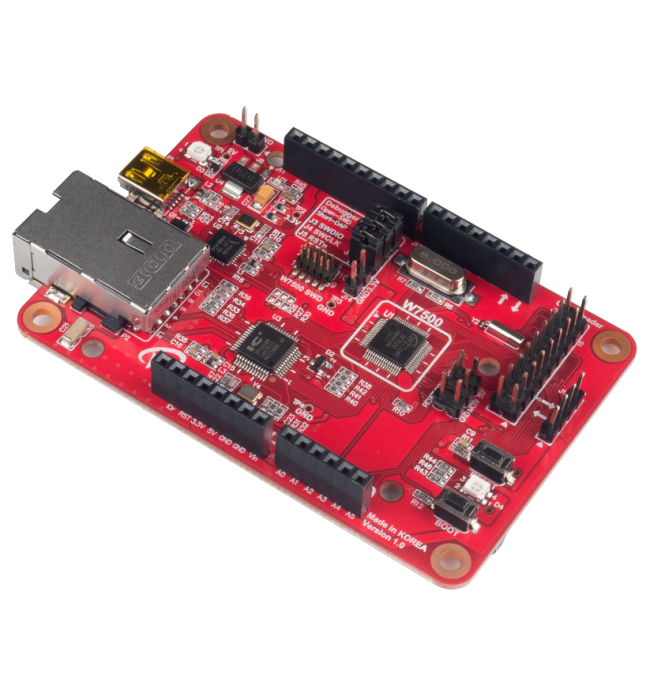

The WIZwiki-W7500 platform is based on the latest chip in the WIZnet family: W7500.The IOP4IoT W7500 chip is the one-chip solution which integrates an ARM Cortex-M0 (including 128kB Flash) and the hardwired TCP/IP core for various embedded application platforms, especially for Internet of Things applications. The TCP/IP core is a market-proven hardwired TCP/IP stack (W5500) with an integrated Ethernet MAC. By using the WIZwiki-W7500 the customer will be able to easily develop a prototype, which can be used as an Arduino shield, as it is fully pin compatible with Arduino products. This is made possible by using the CMSIS-DAP USB and ISP Header which easily makes firmware writing available. The current revision is 1.1 and all orders will be shipped with this revision.

Features

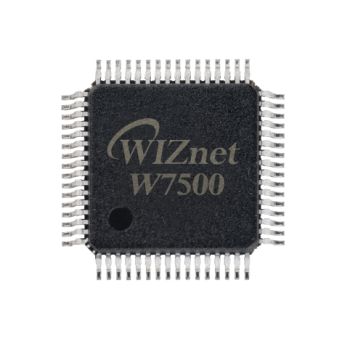

W7500

• ARM Cortex-M0 Core (48 MHz, 128 kB Flash, 16 kB RAM)
• 32 kB RAM for TCP/IP - Can be extended to system RAM
• Hardwired TCP/IP Core with MII Interface
• 8 ADC
• 53 GPIO
• SWD (Serial Wire Debug)
• Timer/PWM
• 3 UART
• 2 SPI
• 2 I2C


External Ethernet PHY

• IP+ IP101GA
• Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver
• Auto MDI/MDIX function
• Supports MDC and MDIO to communicate with the MAC

CMSIS-DAP

• LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
• Drag-n-drop programming
• >USB Serial Port
• Easy to use C/C++ SDK


Available Connectors

• USB Mini B Type
• Slim Size RJ45(with transformer)
• Arduino pin compatible
• SWD Header (1.27mm and 2.54mm)
• GPIO Header
• ISP Header

More features

• 5V USB Power or 5V header supply
• 2 system SW - RESET SW, BOOT SW
• RGB LED
• Micro SD card slot
