WIZ140SR-EVB
€107.10
€90.00
Delivery Time: 7 days for quantities in stock. Other quantities on request.
obsolete: Evaluation Board for the four port Serial-to-Ethernet mopdule WIZ140SR
This product has reached its end of life - parts available until stock is depleted. Please contact us for further details.
Product Description

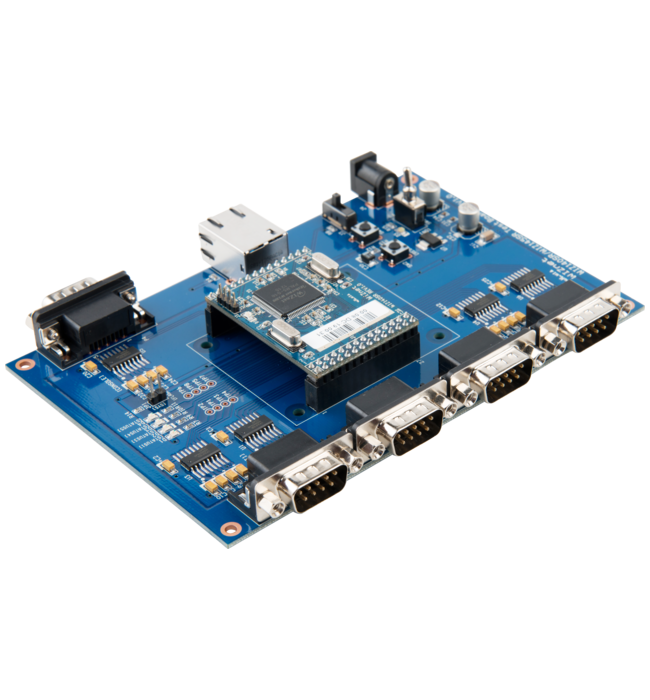

WIZ140SR-EVB is an evaluation board for WIZ140SR.
WIZ140SR is an embedded module based on WIZnet W5300 & ARM Cortex-M3. WIZ140SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment. WIZ140SR is able to communicate four serial equipment at the same time by supporting 4 serial ports(3.3V LVTTL).
Features
- Module Interface : 2×14 2.54mm, 1×14 2.54mm Pin Header (Female)
- Ethernet Interface : RJ-45 (RB1-125BAG1A, Transformer integrated)
- Serial Connector : 4 x D-SUB, 9PIN (Right Angle, Male)
- Power : DC Jack mounted (Outer 3.5 Ø, Inner 1.35 Ø)
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | ~ 140 mm x 120 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M3 |
| ROM | 128 kB |
| RAM | 20 kB |
| voltage regulator (LDO) | Yes |
