WIZ-IP20
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
Product Description
Compact Serial-to-Ethernet converter module in MAG-JACK form factor

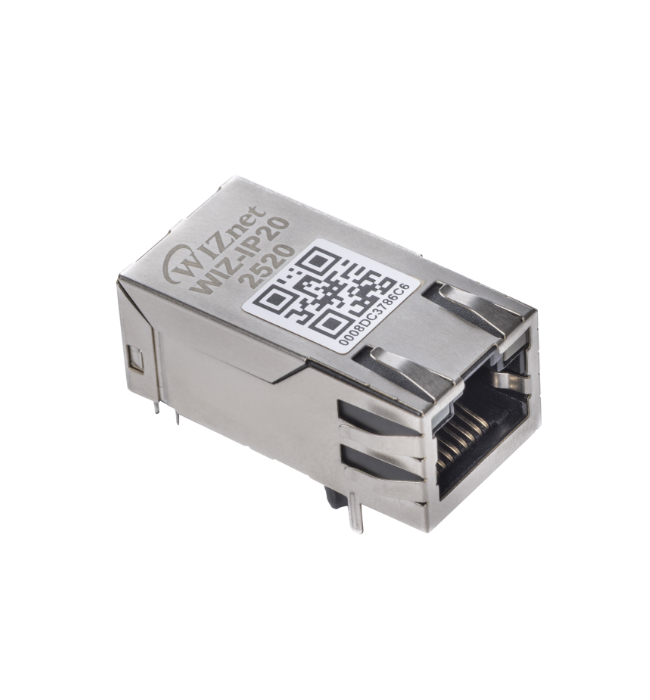

The WIZ-IP20 is a Serial-to-Ethernet conversion module built on WIZnet's W55RP20 ioNIC MCU, designed to add Ethernet networking to UART- or SPI-based devices without extensive firmware development. Housed in a compact MAG-JACK form factor (32.5 × 16.5 × 17.3 mm), the module integrates the RJ45 connector with magnetics and exposes the serial and control signals on a 2.54 mm pin header for direct on-board integration. With support for up to 921,600 bps serial speed, 10/100 Mbps Ethernet, and a wide range of network protocols including TCP server/client, UDP, SSL TCP client, MQTT/MQTTS and Modbus RTU/ASCII, the WIZ-IP20 provides a flexible foundation for industrial connectivity, IoT gateways and embedded networking applications. RS-232C and RS-422/485 communication can be implemented by adding the appropriate transceiver circuitry. Configuration is available via AT commands, the WIZS2E Config Tool or the integrated web interface, and the firmware can be updated over-the-air. With an industrial operating temperature range of -40 °C to +85 °C and KC, FCC and CE certifications, the WIZ-IP20 is suited for demanding industrial environments.
Feature
- Serial-to-Ethernet converter in MAG-JACK form factor
- Based on WIZnet W55RP20 (ioNIC series)
- Supports 10/100 Mbps Ethernet
- Serial speed up to 921,600 bps via UART or SPI
- Supports RS-232C and RS-422/485 with external transceiver circuitry
- Separate Data UART and Debug UART ports
- Network modes: TCP server, TCP client, TCP mixed, UDP (multicast)
- Application protocols: SSL TCP client, MQTT/MQTTS client, Modbus RTU/ASCII
- Supports serial data packing
- Supports TCP connection password
- Status pins: PHY link, TCP connection, Run
- Configurable via AT command, Config-tool or web interface
- Supports OTA firmware update
- Unique MAC address (WIZnet OUI)
- Compact dimensions: 32.5 × 16.5 × 17.3 mm, pin pitch 2.54 mm
- Industrial operating temperature -40 °C to +85 °C
- 3.3 V power supply
- KC, FCC and CE certified
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Manufacturer Address / Hersteller-Adresse | WIZnet Co., Ltd. 5th Floor Humax Village 216 Hwangsaeul-ro Bundang-gu, Seongnam-si Gyeonggi-do 13595 |
| Hinweis zur Verwendung / Usage note | Dieses Produkt ist für den industriellen Einsatz bestimmt und richtet sich ausschließlich an technisch versierte Anwender. Zur Inbetriebnahme sind Fachkenntnisse in den Bereichen Netzwerktechnik, serielle Kommunikation (RS232) sowie Systemintegration erforderlich. Das Gerät ist nicht ohne zusätzliche Komponenten und Konfiguration einsatzfähig. Bitte beachten Sie die technische Dokumentation des Herstellers unter https://docs.wiznet.io/Product/Modules/Serial-to-Ethernet-Module/WIZ-IP20 |
| Dimension | 32.5 x 16.5 x 17.3 mm |
| Ethernet I/F | RJ45 |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | S2E (Serial-to-Ethernet) |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | pin module |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0+ |
| Core speed | 2x 133 MHz |
| Related Chip/Module | W55RP20 |
| pin pitch | 2.54 mm |
| voltage regulator (LDO) | No |
| Ethernet connector | RJ45 |
| Connector Type | header pins |
| Ethernet Speed | 10/100 |
| UART (max speed) | 921 k |
