W55RP20-EVB-Pico

Product Description

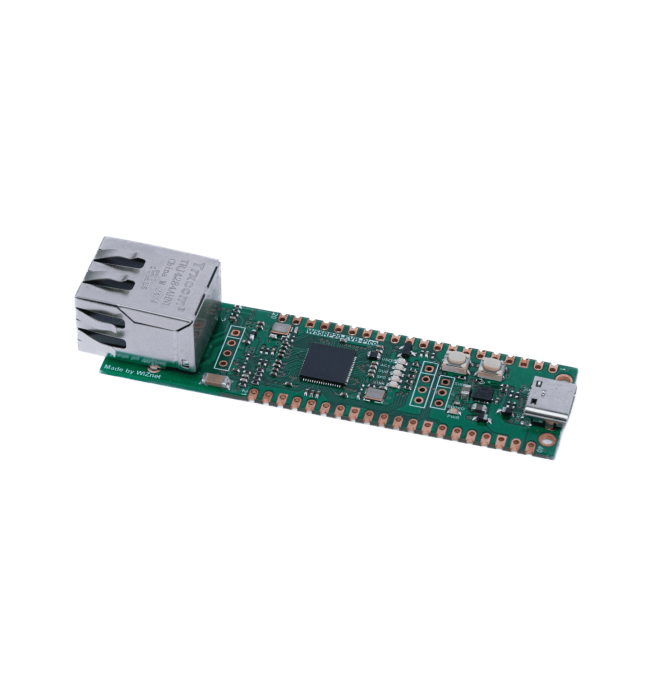

The W55RP20-EVB-Pico is an evaluation board for W55RP20, a chip that combines W5500, a wired TCP/IP controller, and RP2040. Therefore, both the functions of Raspberry Pi Pico and those of the W5500 are available.

Features

• W55RP20 microcontroller
  • Internal 2 MByte Flash
  • Dual-core cortex M0+ at up to 133MHz
  • 264kByte multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • High performance full-crossbar bus fabric
  • 22 multi-function General Purpose I/O (4 can be used for ADC)
  • 1.8-3.3 V IO Voltage (note: the Pico I/O voltage is fixed at 3.3V)
  • 12-bit 500 ksps Analogue to Digital Converter (ADC)
  • Various digital peripherals: 2x UART, 2x I2C, 2x SPI, 16x PWM channels, 1x Timer with 4 alarms, 1x Real Time Counter
  • 2x Programmable I/O (PIO) blocks, 8x state machines total
  • Flexible, user-programmable high-speed IO
  • Can emulate interfaces such as SD Card and VGA
  • Supports Hardwired Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Supports 8 Independent Hardware SOCKETs simultaneously
  • Internal 32 kBytes Memory for TX/RX Buffers
  • Supports High-Speed Serial Peripheral Interface (SPI MODE 0, 3)
• USB C-port for power and data (and for reprogramming the Flash)
• 3-pin ARM Serial Wire Debug (SWD) port
• 10 / 100 Ethernet PHY embedded
• Supports Auto Negotiation, Full / Half Duplex, 10 / 100 Based, WOL, Power Down Mode
• Built-in RJ45 with PoE functionality
• Built-in DCDC (PWM/PFM)
• Additional modules are installed to enable PoE
