W55RP20-S2E
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
W55RP20 SiP pre-programmed with WIZnet's serial-to-Ethernet firmware and a unique MAC address.
Product Description
W55RP20 SiP pre-programmed with WIZnet's serial-to-Ethernet firmware and a unique MAC address

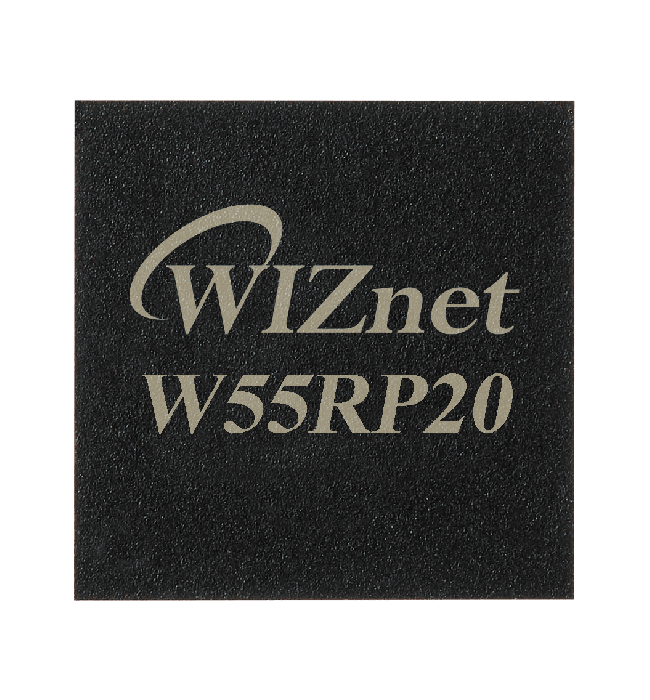

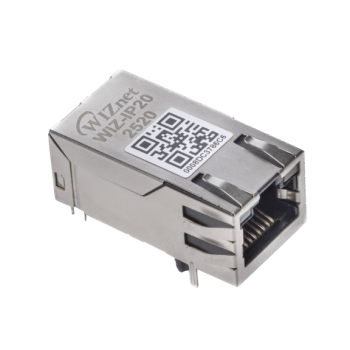

The W55RP20-S2E is a pre-programmed variant of WIZnet's W55RP20 System-in-Package, supplied with serial-to-Ethernet firmware and a unique MAC address from the WIZnet OUI block. The W55RP20-S2E enables a UART or SPI device to communicate over Ethernet without writing networking firmware: data sent on the serial side is transmitted as TCP/IP packets, and TCP/IP data received over the network is delivered back to the serial side. Configuration is available via AT commands, the WIZS2E Config Tool or the integrated web interface; firmware can be updated over-the-air. The same firmware is used in WIZnet's WIZ-IP20 Serial-to-Ethernet module. Operation is supported in TCP server, TCP client, TCP mixed and UDP (multicast) modes, with built-in MQTT/MQTTS, SSL TCP and Modbus RTU/ASCII protocol handlers. RS-232C and RS-422/485 communication can be implemented by adding the appropriate transceiver circuitry. The chip is housed in the same 8 × 8 mm 68-pin QFN package as the W55RP20.
Feature
- W55RP20 SiP pre-programmed with WIZnet's serial-to-Ethernet firmware (same firmware as WIZ-IP20)
- Unique MAC address (WIZnet OUI) factory-programmed
- Supports 10/100 Mbps Ethernet
- Serial speed up to 921,600 bps via UART or SPI
- Supports RS-232C and RS-422/485 with external transceiver circuitry
- Separate Data UART and Debug UART ports
- Network modes: TCP server, TCP client, TCP mixed, UDP (multicast)
- Application protocols: SSL TCP client, MQTT/MQTTS client, Modbus RTU/ASCII
- Custom protocols on request: HTTP, HTTPS, CoAP, external-device OTA
- Supports serial data packing
- Supports TCP connection password
- Status pins: PHY link, TCP connection, Run
- Configurable via AT command, Config tool or web interface
- Supports OTA firmware update
- Same package as W55RP20: 68-pin QFN, 8 × 8 mm
- 3.3 V power supply
- Operating temperature -40 °C to +85 °C
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 8 x 8 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Package | QFN |
| pin count chip | 68 |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0+ |
| MCU I/F | SPI, UART |
| Related Chip/Module | W55RP20 |
| Ethernet Speed | 10/100 |
| UART (max speed) | 921 k |
