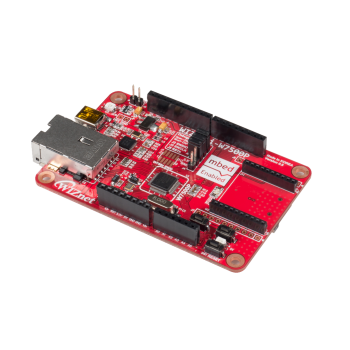

WIZwiki-W7500 mbed Starter Kit
Starter Kit including the WIZwiki platform board based on the W7500
Product description

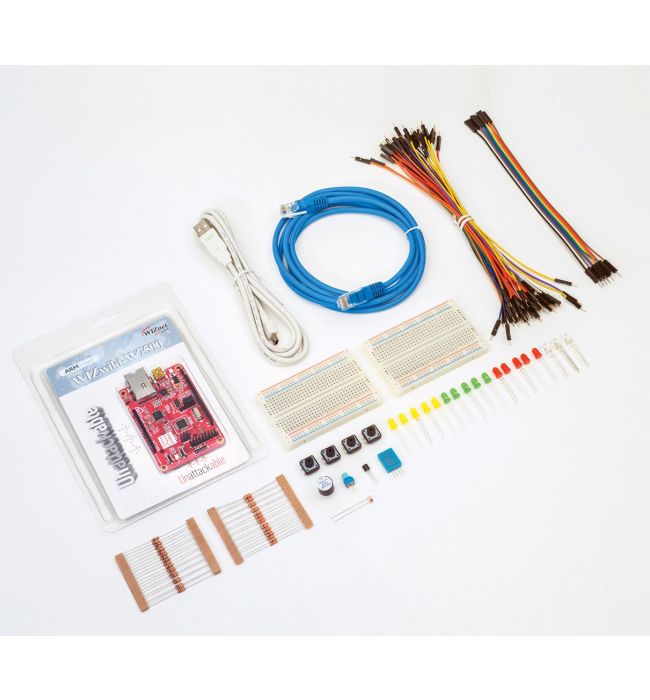

The WIZwiki-W7500 mbed Starter Kit includes the latest chip in the WIZnet family: W7500 and a large variety of accessories like resistors, switches, sensors and LEDs. For a quick start into the IoT development two breadboards and several connector cables are included. This Starter Kit enables you to develop your own IoT applications - everything you need to start from scratch is included!
The IOP4IoT W7500 chip is the one-chip solution which integrates an ARM Cortex-M0 (including 128kB Flash) and the hardwired TCP/IP core for various embedded application platforms, especially for Internet of Things applications. The TCP/IP core is a market-proven hardwired TCP/IP stack (W5500) with an integrated Ethernet MAC. By using the WIZwiki-W7500 the customer will be able to easily develop a prototype, which can be used as an Arduino shield, as it is fully pin compatible with Arduino products. This is made possible by using the CMSIS-DAP USB and ISP Header which easily makes firmware writing available.
Features
W7500
- ARM Cortex-M0 Core (48MHz, 128KB Flash, 16KB RAM)
- 32KB RAM for TCP/IP - Can be extended to system RAM
- Hardwired TCP/IP Core with MII Interface
- 8 ADC
- 53 GPIO
- SWD (Serial Wire Debug)
- Timer/PWM
- 3 UART
- 2 SPI
- 2 I2C
External Ethernet PHY
- IP+ IC10GA
- Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver
- Auto MDI/MDIX function
- Supports MDC and MDIO to communicate with the MAC
CMSIS-DAP
- LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
- Drag-n-drop programming
- >USB Serial Port
- Easy to use C/C++ SDK
Available Connectors
- USB Mini B Type
- Slim Size RJ45(with transformer)
- Arduino pin compatible
- SWD Header (1.27mm and 2.54mm)
- GPIO Header
- ISP Header
More features
- 5V USB Power or 5V header supply
- 2 system SW - RESET SW, BOOT SW
- RGB LED
- Micro SD card slot
Related Links
Manufacturer | WIZnet |
---|---|
Dimension | 86 mm x 65 mm |
Ethernet I/F | PHY |
Operating Temperature | -40 °C to +85 °C |
Network sockets count | 8 |
internal DPRAM buffer memory | 32 kB |
Wake on Lan | Yes |
Power Down Mode | Yes |
Protocol | IPv4 |
MCU core | ARM Cortex M0 |
ROM | 128 kB |
RAM | 48 kB |
voltage regulator (LDO) | Yes |
Ethernet Speed | 10/100 |
