WIZwiki-W7500P

Product description

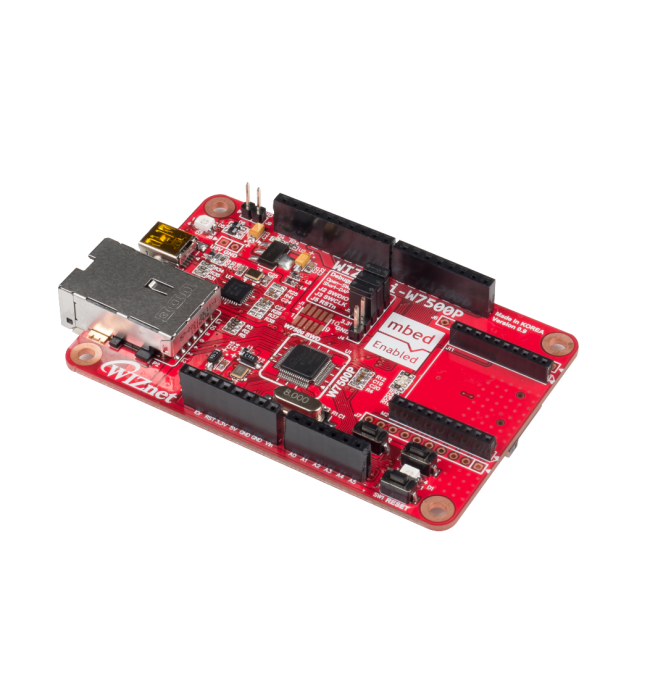

The WIZwiki-W7500P platform is based on the latest chip in the WIZnet family: W7500P. The IOP4IoT W7500P chip is the one-chip solution which integrates an ARM Cortex-M0 (including 128 kB Flash) and the hardwired TCP/IP core for various embedded application platforms, especially for Internet of Things applications. The TCP/IP core is a market-proven hardwired TCP/IP stack (W5500) with an integrated Ethernet MAC. By using the WIZwiki-W7500P the customer will be able to easily develop a prototype, which can be used as an Arduino shield, as it is fully pin compatible with Arduino products. This is made possible by using the CMSIS-DAP USB and ISP Header which easily makes firmware writing available.

This board incorporates the 3rd (latest) Revision of W7500P. W7500P-R3 is recommended for new design.
A 4-digit datecode is printed on every chip identifying the week of production. Datecodes greater than 1720 (year 2017, week 20) mean the chip already is Rev. 3 which has improved stability. In case you have any questions please feel free to contact us.

Features

W7500P

• ARM Cortex-M0 Core (48 MHz, 128 kB Flash, 16 kB RAM)
• Internal Ethernet PHY: IC+ IP101G
• MDI Interface
• 32 kB RAM for TCP/IP - Can be extended to system RAM
• Hardwired TCP/IP Core
• 8 ADC
• 34 GPIO
• SWD (Serial Wire Debug)
• Timer/PWM
• 3 UART
• 2 SPI
• 2 I2C
• dimension: 64 LQFP (7x7 mm)

CMSIS-DAP

• LPC11U35FHI33/501, ARM Cortex-M0 Core, NXP
• Drag-n-drop programming
• USB Serial Port
• Easy to use C/C++ SDK

Available Connectors

• USB Mini B Type
• Slim Size RJ45 (with transformer)
• Arduino pin compatible headers
• Xbee header

More features

• 5V USB or 5V header power supply
• 2 system switches - RESET & BOOT
• 1 user switch
• RGB LED
• Micro SD card slot
