WIZ610eu

€10.12 €8.50
Delivery Time
5 - 7 d

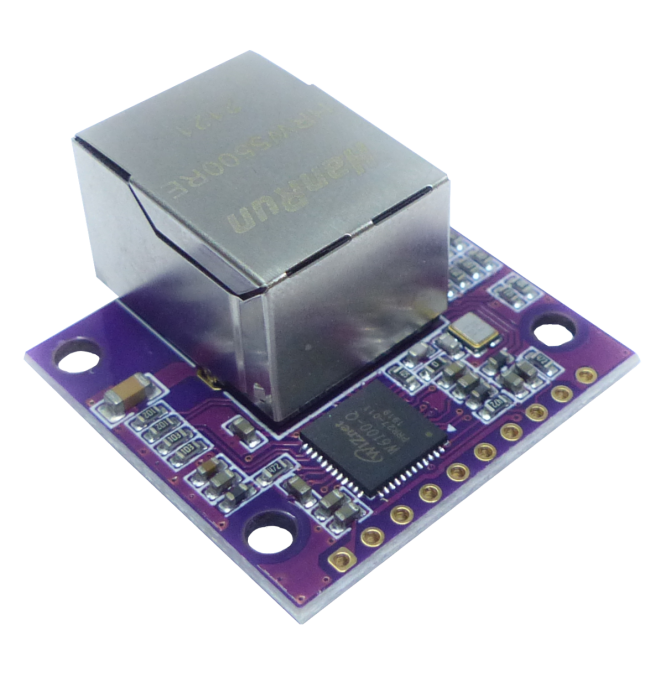

WIZ610eu is an compact size IPv4/IPv6 dual stack network module that includes a W6100 (TCP/IP hardwired chip and PHY embedded), a transformer and RJ45

Product Description

WIZ610eu is the network module that includes W6100 (TCP/IP hardwired chip, include PHY), MAG-JACK (RJ45 with X’FMR) with other glue logics. It can be used as a component and no effort is required to interface W6100 and Transformer. The best advantage of the WIZ610eu is that it supports IPv6. The WIZ610eu is an ideal option for users who want to develop their Internet-enabling systems rapidly.



Features

  • Support Hardwired Internet protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
  • Support IPv4/IPv6 Dual Stack
  • Support 8 independent SOCKETs simultaneously with 32KB Memory
  • Supports half/full duplex operation
  • Support SOCKET-less command: ARP, PING, ICMPv6(PING, ARP,DAD,NA,RS) Command for IPv6 Auto-
  • configuration& Network Monitoring
  • Support Ethernet Power down mode & Main Clock Switching for power save
  • Support Wake on LAN over UDP
  • Supports high speed SPI Interface (SPI mode 0/3)
  • Internal 32Kbytes Memory for TX/ RX Buffers
  • 10BaseT/10BaseTe/100BaseTX Ethernet PHY Integrated
  • Support Auto Negotiation (Full and half duplex, 10 and 100-based )
  • Support Auto-MDIX only when Auto-Negotiation mode
  • Not support IP Fragmentation
  • 3.3V operation with 5V I/O signal tolerance
  • Temperature : -40 ~ 85℃(Operation)

Related Links

WIZnet Documentation W6100

More Information
Manufacturer WIZnet
Ethernet I/F PHY
Operating Temperature -40 °C to +85 °C
Operating Voltage 3.3 V
Functions 3-in-1, TCP/IP + MAC + PHY
internal DPRAM buffer memory 32 kB
Network sockets count 8
Package pin module
Pin count module 2 x 6
Protocol IPv4
MCU I/F SPI
PoE possible No
Ethernet connector RJ45
pin pitch 2.54 mm
Ethernet Speed 10/100
