WIZ550SR
€25.35
€21.30
Delivery Time
5 - 7 d

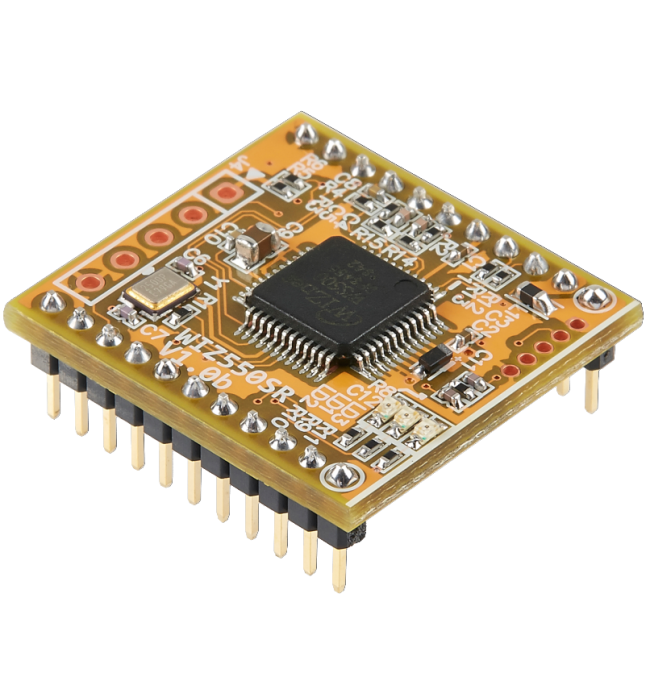

Serial to Ethernet module with W5500 and STM32F103RCT6 without transformer and RJ45.
Product Description
2.00mm pin pitch Serial to Ethernet plugin module
The WIZ550SR is a Serial to Ethernet module, It contains the TCP/IP chip W5500 from WIZnet and a Cortex-M3 STM32F103RCT6 from STmicro. WIZ550SR does not contain RJ45 because of the small PCB size but is equipped with 2mm pitch pin headers.
It is the protocol converter that transmits the data sent by serial equipment as TCP/IP data, and converts back the TCP/IP data received through the network into serial data. It complies with industrial temperature standard and supports the serial interfaces of UART.
Features
- Very small size Serial to Ethernet Module based on the W5500
- microcontroller from STmicro, Cortex-M3 based STM32F103RCT6
- Does not include a transformer or RJ45
- 2.00mm Pin pitch header, 1x11 pins
- MDI support (TXN, TXP, RXN, RXP)
- UART interface (RXD, TXD, RTS, CTS, DSR and DTR)
- separate Debug UART
- configuration with AT command set or configuration program possible
- 10/100Mbps Ethernet & up to 230kbps serial speed
- Hardwired TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- 8 Independent hardware socket
- Internal 32 KBytes memory for TCP/IP packet processing
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 22 mm x 24 mm x 13 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 3.3 V |
| Functions | 3-in-1, TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | pin module |
| Pin count module | 2 x 11 |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M3 |
| Core speed | 96 MHz |
| MCU I/F | UART |
| Related Chip/Module | W5500 |
| pin pitch | 2.00 mm |
| voltage regulator (LDO) | No |
| Connector Type | header pins |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
