WIZ550SR-EVB
€45.82
€38.50
Delivery Time: 7 days for quantities in stock. Other quantities on request.
obsolete: The WIZ550SR-EVB is an evaluation board for the WIZ550SR Serial to Ethernet module.
This product has reached its end of life - parts available until stock is depleted. Please contact us for further details.
Product Description

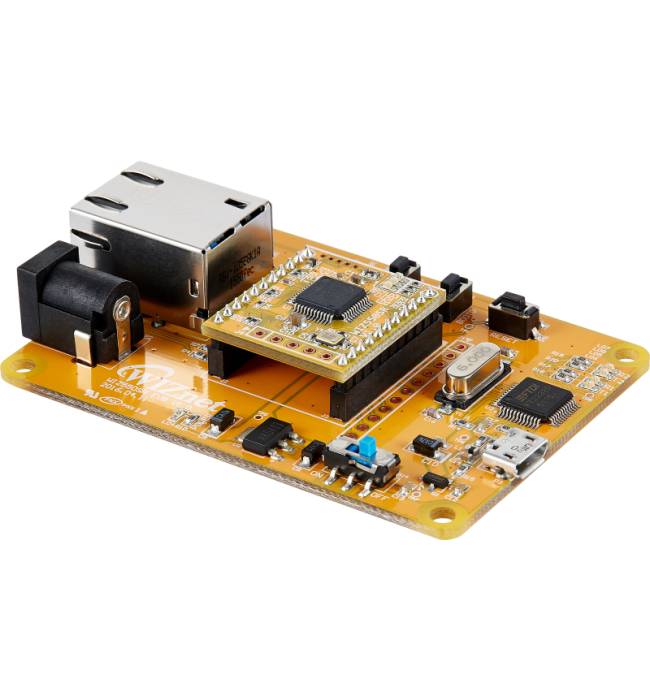

The WIZ550SR-EVB is an evaluation board for the WIZ550SR Serial to Ethernet module. It contains the following parts: the WIZ550SR evaluation board equipped with the WIZ550SR module, a Cat 5 Ethernet cable and a micro USB type B cable.
Features
- 48LQFP lead-free package (7x7mm, 0.5mm pitch)
- Hardwired TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Unattackable hardware engine for preventing network attacks such as flooding, spoofing, injection
- 8 Independent hardware socket
- Internal 32 kBytes memory for TCP/IP packet processing
- 10BaseT / 100Base TX Auto Negotiable Ethernet PHY Embedded
- 3.3V Operation with 5V I/O signal tolerance
- LED outputs (full/half duplex, link speed, active)
- Reduced heat dissipation (W5500: 40℃ / other chips : 60-70℃)
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 70 mm x 50 mm x 17 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Package | stand alone PCB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M3 |
| ROM | 256 kB |
| RAM | 48 kB |
| I/O ports | stand alone PCB |
| Ethernet connector | RJ45 |
| pin pitch | 2.00 mm |
| voltage regulator (LDO) | Yes |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
