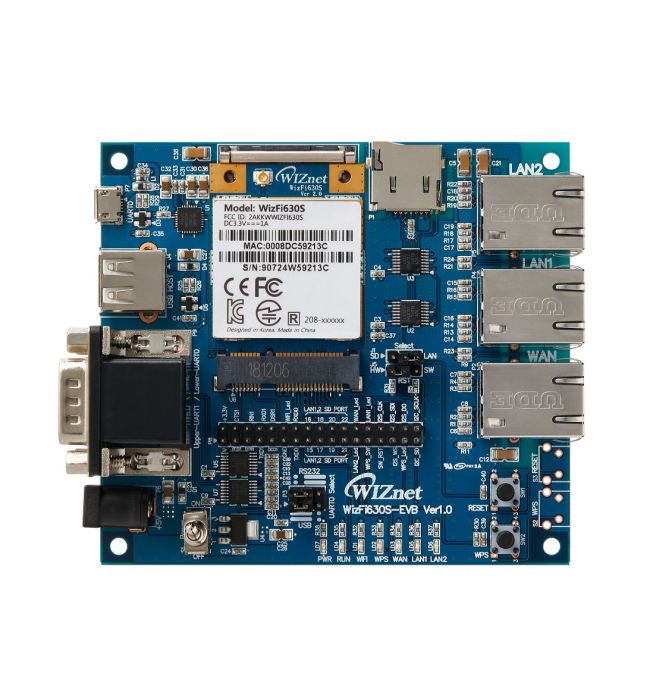

WizFi630S-EVB Evaluation Board for WizFi630S Module

Product Description

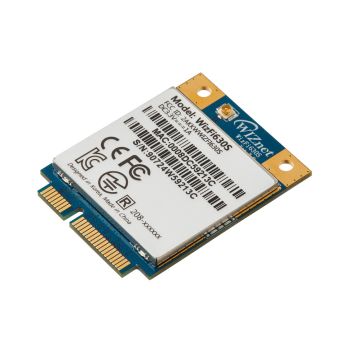

WizFi630S supports interfaces like Serial (UART), LAN, and Wi-Fi(WLAN). Functions such as Serial(UART)-To-Wi-Fi, Serial-To-Ethernet and Ethernet-To-Wi-Fi are supported by scripts and/or commands in OpenWRT. Users can connect to WizFi630S’s internal web server or use the serial commands for simple Wi-Fi settings – not only for serial devices but also for 8/16/32 bit microcontrollers can use UART for simple Wi-Fi settings.

WizFi630S can significantly reduce the procedures for wireless module design, testing, and certification; WizFi630S can be an ideal solution for users who lack wireless network experience. WizFi630S follows the 802.11b/g/n standard and supports up to 150Mbps speed in wireless interface. WizFi630S can be tested with an evaluation board and all documents are available online.



  • WizFi630A Pin compatible
  • 580MHz Clock
  • 16-bit DDR2 128Mbyte SRAM, 32Mbyte SPI Flash
  • Complies with IEEE802.11b/g/n
  • Gateway/AP(Bridge)/AP-Client/Client(Station)/Ad-hoc Mode, WDS/Repeater support
  • 1T1R RF Interface (2.4 GHz only)
  • Physical link rate up to 150Mpbs
  • 3 Built-in Ethernet Ports
  • 2 Serial Ports included
  • Can work as Wi-Fi Router
  • WEP 64/128bit, WPA/WPA2-PSK with TKIP or AES
  • Router and Firewall functioniality
  • Operating temperature range: -25° C - 80° C
  • CE, FCC, KC, RoHS certification


Related Links

WIZnet Documentation

More Information
Manufacturer WIZnet
Dimension ~ 140 mm x 120 mm
Ethernet I/F PHY
Operating Temperature 0 °C to +70 °C
Auto Negotiation Yes
Network sockets count 8
internal DPRAM buffer memory 32 kB
Wake on Lan No
Power Down Mode No
Protocol IPv4
MCU core ARM Cortex M0
voltage regulator (LDO) Yes
