RB1-ZZ-0470
€2.38
€2.00
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks

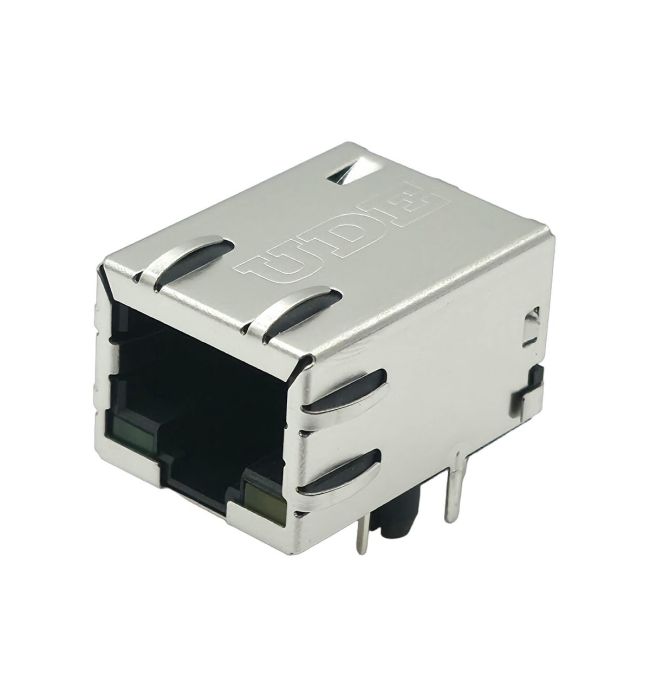

Shielded RJ45 MagJack, 10/100Base-T with integrated magnetics. PoE-capable, Tab Down, through-hole.
Product Description
Shielded RJ45 MagJack with integrated 10/100Base-T magnetics and PoE support.
The RB1-ZZ-0470 is a single-port RJ45 jack with built-in 1:1 magnetics (transformer), combining connector and Ethernet isolation in one through-hole component. Its Tab Down orientation and shielded metal housing make it suitable for compact, EMC-conscious 10/100 Ethernet designs, including Power-over-Ethernet applications.
Features
- 10/100Base-T with integrated 1:1 transformer (magnetics)
- PoE-capable — power delivered via spare pairs, integrated rectifier diode
- Tab Down orientation, through-hole (THT) mounting
- Shielded stainless-steel housing with EMI fingers
- Status LEDs: green (570 nm) and yellow (588 nm)
- Gold Flash contact plating, phosphor-bronze terminals
- Operating temperature −40 … +85 °C, 750 mating cycles
| Functions | passive |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Durability (cycles) | 750 cycles |
| PoE possible | Yes |
| Plating | Gold Flush |
| EMI Fingers | yes |
| Tab | Tab Down |
| Transformer | Yes |
| Center Tab | TCT (R4) RCT (R5) |
| Connector Type | Through Hole |
