WizFi250-EVB

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • WizFi250-EVB
  • WizFi250-EVB

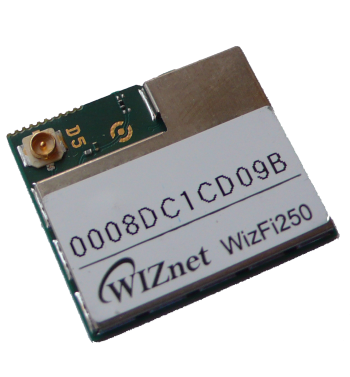

  • WizFi250 module
  • WizFi250 module

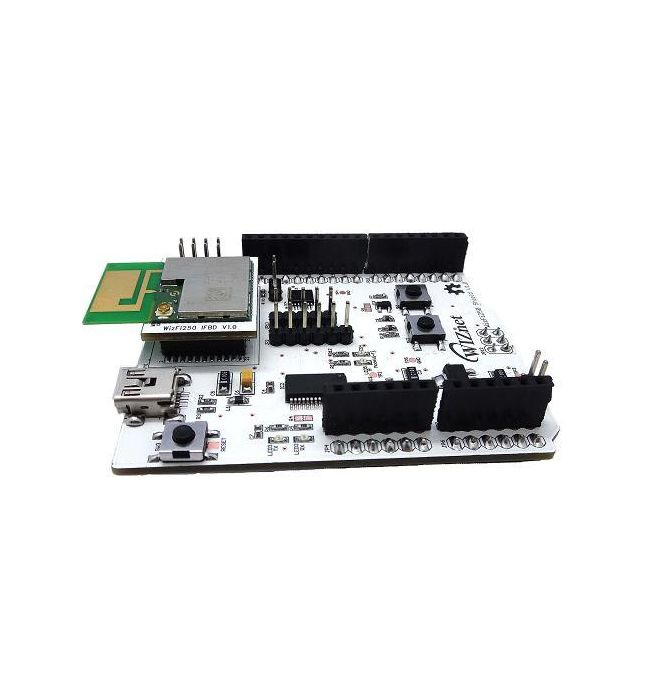

WizFi250-EVB

Excl. Tax: €47.00 Incl. Tax: €55.93

Quick Overview

Evaluation Board for the WizFi250 Serial-to-WiFi module

Details



Evaluation Board for the WizFi250 wireless module

Low power - very small - Serial-to-WiFi module

Features

  • Integrated RF power amplifier: Antenna calibration is not required
  • 1MB Flash Memory, 128KB SRAM
  • Supports Low power consumption through dynamic power management mode
  • Provides the highest compatibility with the most of APs
  • Compact Size to fit into any kind of target device, even handheld device such as mobile, PDA and etc
  • Single band 2.4GHz IEEE 802.11b/g/n
  • Providing flexible system configuration through Web
  • RoHS
  • Device Package: 28×20 mm (17×20 mm)
  • Serial Interface: UART, SPI (can be chosen by 0 Ohm resistor)
  • Powerful Web server interface
  • Soft AP (Enough memory retention, L2 Switching)
  • OTA (Firmware Uploading Over the Air)

Additional Information

Dimension Arduino Shield
Ethernet I/F WiFi
Operating Temperature 0°C to +70°C
Operating Voltage No
Functions No
Auto Negotiation Yes
Network sockets count -
internal DPRAM buffer memory -
Package No
pin count No
auto MDIX No
Wake on Lan No
Power Down Mode No
typ. Power Consumption ~ 250 mA
MCU core ARM Cortex M3
Core speed -
RAM 128k
ROM 1M
I/O ports 8 GPIOs
SPI (max. speed) ~ 3M to 5M tbd.
MCU I/F No
PHY chip -
Related Chip/Module No
Connector Type No
Serial I/F No
serial connector count No
Ethernet connector No
pin pitch No
voltage regulator (LDO) Yes
MAC address inside Yes
PoE possible No
MII No
Ethernet Speed No
pre-programmed FW version 1.0
UART (max speed) No
parallel memory bus No
Debug I/F USB
Manufacturer No

You may also be interested in the following product(s)

WizFi250-PA

WizFi250-PA

Excl. Tax: €18.00 Incl. Tax: €21.42 As low as: €17.02
W5I-BO-07

W5I-BO-07

Excl. Tax: €2.74 Incl. Tax: €3.26

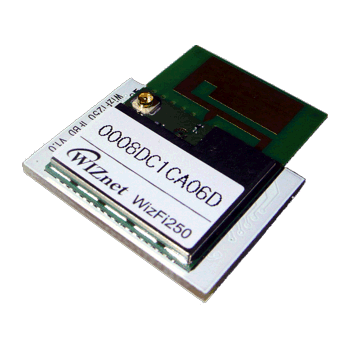

WizFi250-H

WizFi250-H

Excl. Tax: €21.40 Incl. Tax: €25.47 As low as: €19.87

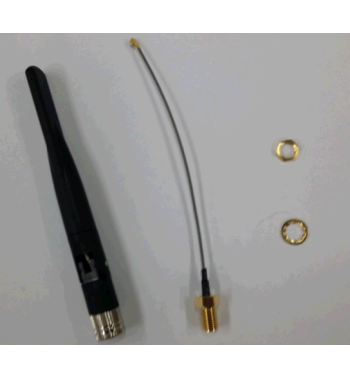

W5E-WO-03L
