Webserver built-in module to control analog and digital I/O with hardwired Ethernet
Product Description

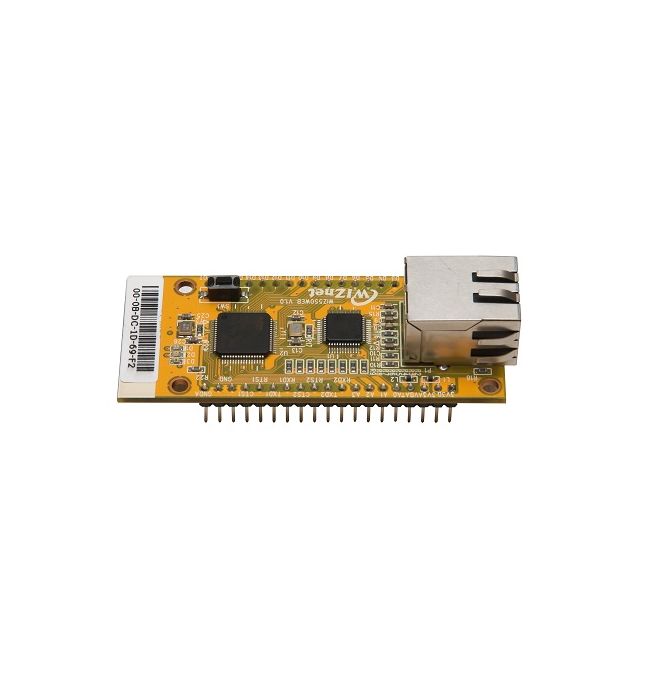

WIZ550web is an embedded Web server module based on WIZnet’s W5500 hardwired TCP/IP chip, Users can control & monitor the 16-configurable digital I/O and 4-ADC inputs on module via web pages. WIZ550web provides the firmware & web page examples for user’s customization.
Features
- Web Server built-in module to control digital I/O or analog input on the web browser
- Customizable web page : provides various demo pages for PC & mobile devices
- 16 Digital I/Os & 4 Analog Inputs
- Supports “Serial to Web(Ethernet)” data transmission
- Supports SD card for web for web resources
- Module Configuration : Web, AT Command & Configuration Tool Program
- Provides JAVA based Configuration Tool Program
- Supports firmware uploading using TFTP
- 10/100Mbps Ethernet & Max.230Kbps Serial Interface
- MCU : STM32F103RBT6
- TCP/IP Controller: WIZnet W5500
- RJ45 (Transformer integrated): J1B1211CCD
- External Flash Memory: AT45DB081D
- 2.54mm Pin Header x 2
Related Links
Additional Information
Dimension | 74.4 x 30 x 24 mm |
---|---|
Memory | 8 MBit |
Power Consumption | typical: 170mA @ 3.3V |
Serial Command Type | AT |
Operating Temperature | 0° to 85° C |
Operating Voltage | 3.3 V |
Connector | Pin headers |
Functions | 4-in-1, MCU+TCP/IP+MAC+PHY |
Auto Negotiation | Yes |
Network sockets count | 8 |
internal DPRAM buffer memory | 32 kB |
pin count | 1 x 18 and 1 x 19 |
auto MDIX | No |
Wake on Lan | Yes |
Power Down Mode | Yes |
Core speed | 72 MHz |
RAM | 20 kB |
ROM | 128 kB |
I/O ports | 2 |
Related Chip/Module | W5500 |
Connector Type | header pins |
Serial I/F | RS232 |
serial connector count | 2 |
MAC address inside | Yes |
Ethernet Speed | 10/100 |
UART (max speed) | 230k |
Debug I/F | RS232 |
Manufacturer | WIZnet |
