WIZ550web-EVB

€113.05 €95.00
Delivery Time
5 - 7 d
Evaluation board for the WIZ550web module

Product Description

Evaluation board for the WIZ550web module

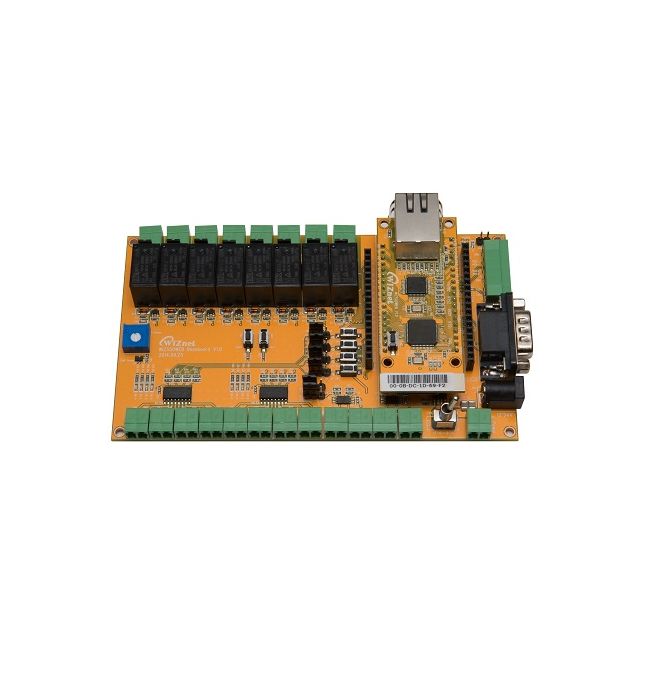

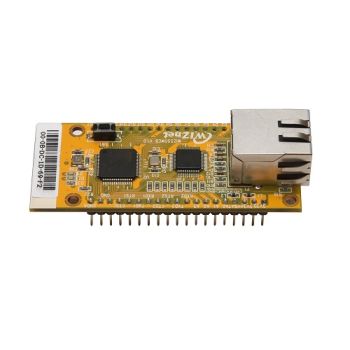

The WIZ550web-EVB is an evaluation board for the WIZ550web module. The WIZ550web is an embedded Web server module based on the WIZnet W5500. The user can control & monitor the 16-configurable digital I/O and 4 analog inputs on module via web pages. This EVB includes a 2GB or 4GB Micro SD card, 12V power supply, Ethernet network cable, serial cable, the module WIZ550web and the WIZ550web baseboard.



Features

  • Supports quick test & evaluation of WIZ550web module
  • 8 Digital Input (Photocouplers-TLP290-4 / 4 tact switches)
  • 8 Digital Output (connected to relays HR91C-05)
  • 4 Analog Input (A0: Potentiometer / A1: Temperature Sensor)
  • RS-232C for serial data transmission & RS422 for AT command input
  • DC 9-24V Power Input
  • Further information can be found at the WIZ550web product page.


Related Links

WIZnet Documentation
WIZ550web-EVB  product page on wiznet.io

More Information
Manufacturer WIZnet
Dimension 145 mm x 85 mm x 28 mm
Ethernet I/F PHY
Operating Temperature -40 °C to +85 °C
Operating Voltage 12 V
Functions 4-in-1, MCU + TCP/IP + MAC + PHY
Auto Negotiation No
Network sockets count 8
internal DPRAM buffer memory 32 kB
Package stand alone PCB
Wake on Lan Yes
Power Down Mode Yes
Protocol IPv4
MCU core ARM Cortex M3
ROM 128 kB
RAM 20 kB
I/O ports stand alone PCB
Ethernet connector RJ45
pin pitch 2.54 mm
voltage regulator (LDO) Yes
Ethernet Speed 10/100
UART (max speed) 921 k
