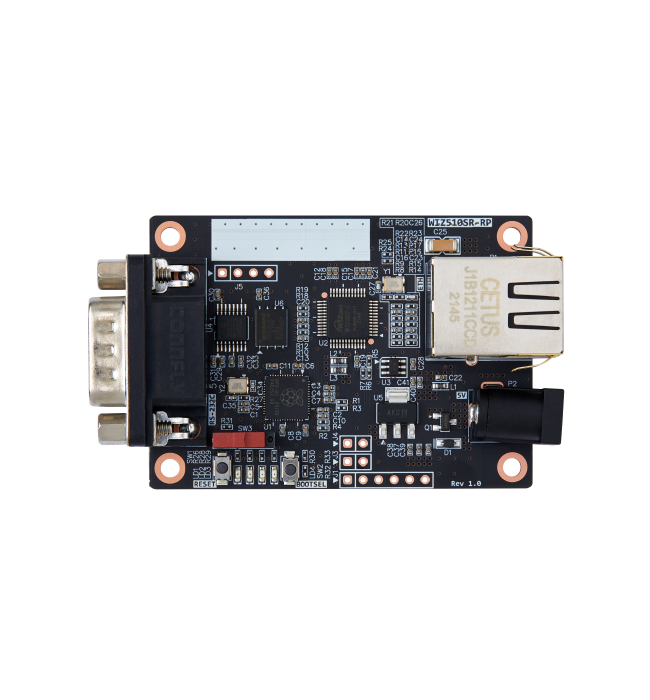

WIZ510SR-RP top view

Double click on above image to view full picture

Zoom Out
Zoom In

WIZ510SR-RP

Excl. Tax: €24.40 Incl. Tax: €29.04

Quick Overview

2.54 mm pitch Serial to Ethernet module based on RP2040 and W5100S

Details

2.54 mm pitch compact size Serial to Ethernet module

Product Description

The WIZ510SR-RP is a compact sized serial to Ethernet module using the RP2040 MCU with W5100S Ethernet Chip. WIZ510SR-RP is a protocol converter that transmits data sent by serial equipment as TCP/IP data, and converts the TCP/IP data received through the network back into serial data to the serial equipment.

Features

  • Serial to Ethernet Module based on RP2040 MCU (TTL level)
  • W5100S and magnetic RJ45 modular jack included
  • 10/100Mbps Ethernet & Up to 230kbps serial speed
  • Status pins: PHY link status / TCP connection status
  • Serial signals (RS232C): TXD, RXD, RTS, CTS
  • WIZ510SR-RP has 1x UART, 1x SWD, 1x RS232C, and 1 Ethernet
  • UART, SWD for Debug, and RS232C, Ethernet for Data transceive
  • Configuration is possible via serial AT commands or via Configuration tool
  • Built-in 10/100 Mbps Ethernet ESD Protection IC



Related Links

WIZ510SR-RP documentation in WIZnet Docs

Additional Information

Dimension 50 x 30 mm
Ethernet I/F RJ45
Operating Temperature No
Operating Voltage 5 V
Functions 4-in-1, MCU+TCP/IP+MAC+PHY
Auto Negotiation Yes
Package stand alone PCB
pin count -
auto MDIX Yes
Wake on Lan Yes
Power Down Mode Yes
typ. Power Consumption -
MCU core RP2040
MCU I/F I2C, SPI, UART, USB
PHY chip -
Related Chip/Module W5100S
Connector Type DB9
Serial I/F TTL
serial connector count 2
Ethernet connector RJ45
pin pitch 2.54 mm
voltage regulator (LDO) Yes
MAC address inside Yes
PoE possible No
Ethernet Speed 10/100
UART (max speed) 230k
Manufacturer WIZnet
