Raspberry Pi Pico EVB combined with the W6100
Product description

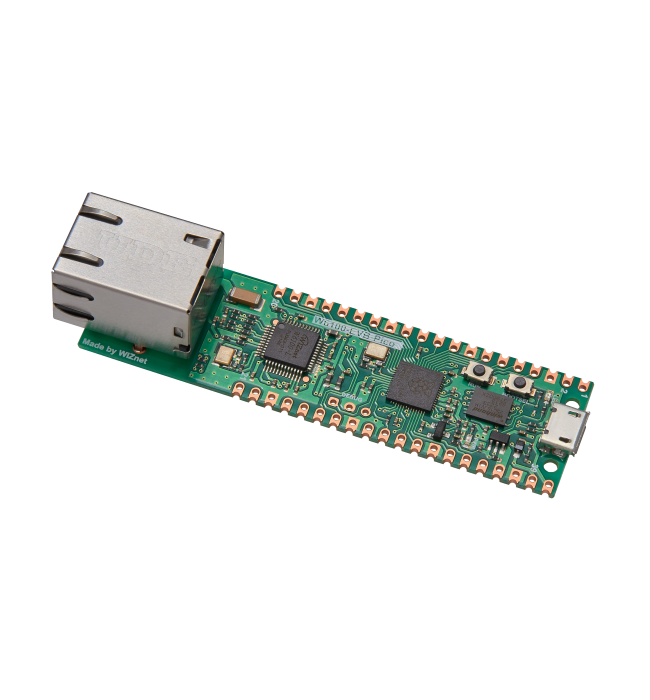

The W6100-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 and fully hardwired TCP/IP controller W6100 - and basically works the same as the Raspberry Pi Pico board but with additional Ethernet via W6100.Features
- RP2040 microcontroller with 2MByte Flash
- Dual-core cortex M0+ at up to 133MHz
- 264kByte multi-bank high performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- High performance full-crossbar bus fabric
- 30 multi-function General Purpose IO (4 can be used for ADC)
- 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
- 12-bit 500ksps Analogue to Digital Converter (ADC)
- Various digital peripherals: 2 UART, 2 I2C, 2 SPI, 16 PWM channels, 1 Timer with 4 alarms, 1 Real Time Counter
- 2 Programmable IO (PIO) blocks, 8 state machines total
- Flexible, user-programmable high-speed IO
- Can emulate interfaces such as SD Card and VGA
- Includes W6100
- Supports Hardwired Internet Protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
- Supports 8 independent SOCKETs simultaneously with 32KB memory
- Internal 16 Kbytes Memory for TX/RX buffer
- SPI Interface
- Micro-USB B port for power and data (and for reprogramming the Flash)
- 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
- 3-pin ARM Serial Wire Debug (SWD) port
- 10 / 100 Ethernet PHY embedded
- Supports Auto Negotiation, Full / Half Duplex, 10 / 100 Based
- Built-in RJ45 (RB1-125BAG1A)
- Built-in LDO (LM8805SF5-33V)
Related Links
Additional Information
| Dimension | 75 x 21 mm |
|---|---|
| Memory | No |
| Power Consumption | No |
| Serial Command Type | No |
| Operating Temperature | No |
| Operating Voltage | 5 V |
| Connector | No |
| Functions | S2E (Serial-to-Ethernet) |
| Auto Negotiation | Yes |
| Network sockets count | No |
| internal DPRAM buffer memory | No |
| pin count | - |
| auto MDIX | No |
| Wake on Lan | No |
| Power Down Mode | Yes |
| Core speed | No |
| RAM | No |
| ROM | No |
| I/O ports | No |
| Related Chip/Module | No |
| Connector Type | No |
| Serial I/F | No |
| serial connector count | No |
| MAC address inside | No |
| Ethernet Speed | 10/100 |
| UART (max speed) | No |
| Debug I/F | No |
| Manufacturer | WIZnet |
