Details

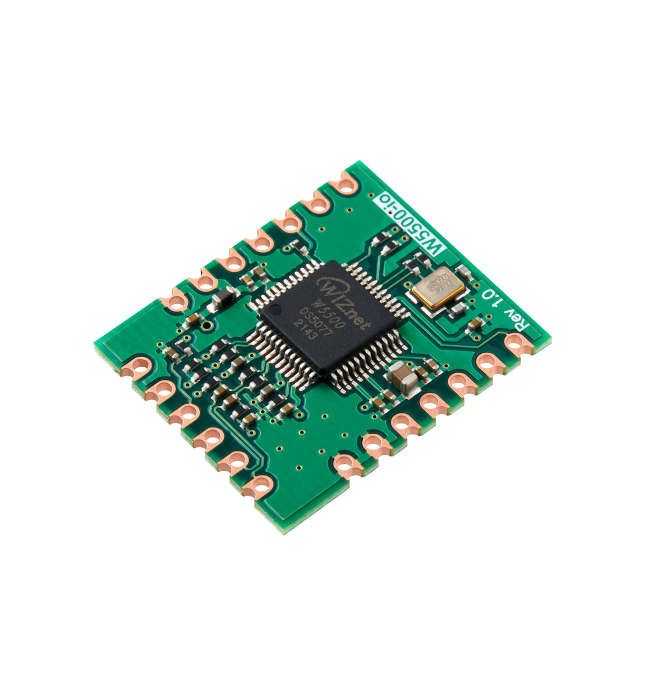

W5500-io is a compact size network module that includes a W5500 (TCP/IP hardwired chip and PHY embedded). It can be used as a component and no effort is required to interface W5500. The W5500-io is an ideal option for users who want to develop their Internet-enabling systems rapidly. W5500-io is hardware compatible with W5100s-io and W6100-io.
Additional Information
| Dimension | No |
|---|---|
| Ethernet I/F | PHY |
| Operating Temperature | No |
| Operating Voltage | 3.3 V |
| Functions | 3-in-1, TCP/IP+MAC+PHY |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Package | SMD module |
| pin count | - |
| auto MDIX | Yes |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| typ. Power Consumption | No |
| SPI (max. speed) | No |
| MCU I/F | SPI |
| PHY chip | No |
| Related Chip/Module | No |
| Ethernet connector | header pins |
| pin pitch | 2.54 mm |
| MAC address inside | No |
| PoE possible | No |
| Ethernet Speed | 10/100 |
| parallel memory bus | No |
| Manufacturer | WIZnet |
