W5100S-io
€7.38
€6.20
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
plugin network module based on W5100S with SPI
Product Description

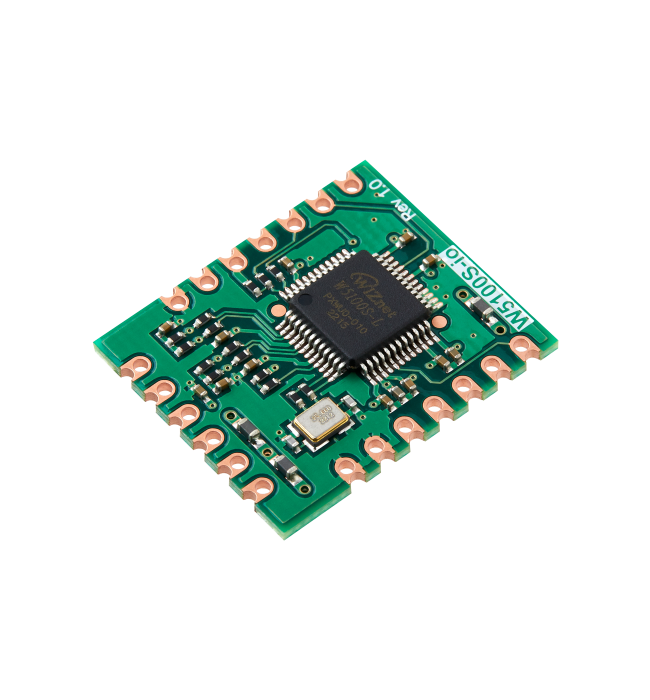

W5100S-io is a compact size network module that includes a W5100S (TCP/IP hardwired chip and PHY embedded). It can be used as a component and no effort is required to interface W5100S. The W5100S-io is an ideal option for users who want to develop their Internet-enabling systems rapidly. W5100S-io is hardware compatible with W5500-io and W6100-io.
Features
- Plugin Network Module.
- Hardware compatible with W5500-io, W6100-io.
- Usable without H/W design for W5100S.
- Fast evaluation for W5100S & MCU in the target board.
- Support high speed SPI interface.
- Support power down mode and Wake-on-LAN function.
- Very small form factor : 20mm x 24mm x 2.6mm.
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Ethernet I/F | PHY |
| Operating Voltage | 3.3 V |
| Functions | 3-in-1, TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| internal DPRAM buffer memory | 16 kB |
| Network sockets count | 4 |
| Package | SMD module |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU I/F | SPI |
| PoE possible | No |
| Related Chip/Module | W5100S |
| Ethernet connector | header pins |
| pin pitch | 2.54 mm |
