WIZPoE-P1
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
Compact PoE module compliant with IEEE802.3af, supporting Mode A and Mode B.
Product Description
Compact PoE module compliant with IEEE802.3af, supporting Mode A and Mode B

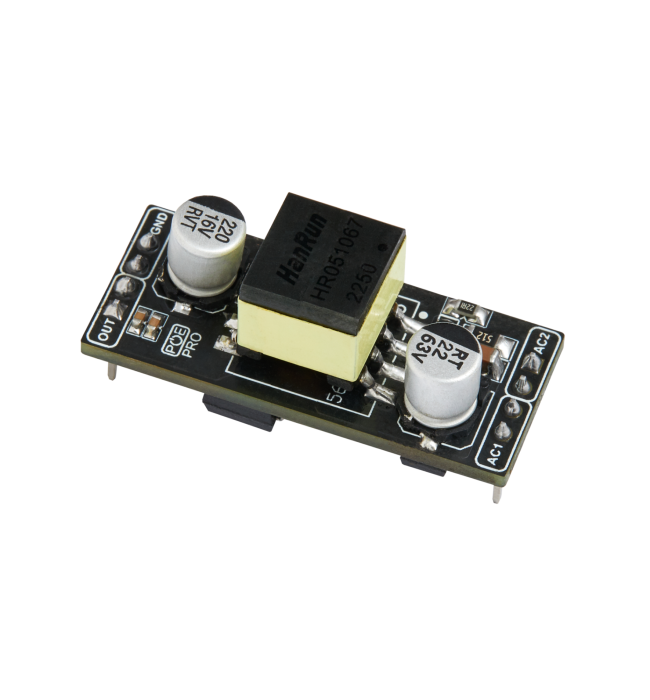

The WIZPoE-P1 is an isolated Power over Ethernet (PoE) module that extracts power from an Ethernet cable and provides a regulated 5 V DC output to a host system. Compliant with IEEE 802.3af, it supports both Mode A (Endspan, power on data pairs 1/2 and 3/6) and Mode B (Midspan, power on spare pairs 4/5 and 7/8) and is polarity-insensitive on both inputs. The integrated bridge rectifiers, isolated DC/DC converter and feedback regulation deliver up to 9 W (5 V / 1.8 A) with high conversion efficiency. The module requires an external network transformer for data communication and is intended for integration into a host PCB. Typical applications include IP cameras, network access points, IP phones, surveillance systems, network attached storage and embedded IoT nodes. The chip input withstand voltage of up to 100 V protects the host design against transient overvoltage on the Ethernet line.
Feature
- IEEE 802.3af compliant
- Supports Mode A (Endspan) and Mode B (Midspan)
- Wide input voltage range 41 V – 61 V DC, nominal 48 V
- Output: 5 V DC, up to 1.8 A (9 W max)
- Isolated DC/DC converter with high conversion efficiency (typ. 80 %)
- Internal 2-channel bridge rectifiers, polarity-insensitive on both inputs
- Short-circuit protection with auto-recovery
- Chip input withstand voltage up to 100 V (transient protection)
- External network transformer required for data path
- Compact dimensions: 38 × 16 × 13 mm
- Operating temperature -25 °C to +45 °C
- Storage temperature -30 °C to +80 °C
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Manufacturer Address / Hersteller-Adresse | WIZnet Co., Ltd. 5th Floor Humax Village 216 Hwangsaeul-ro Bundang-gu, Seongnam-si Gyeonggi-do 13595 |
| Hinweis zur Verwendung / Usage note | Dieses Produkt ist eine Stromversorgungsbaugruppe für den professionellen Einsatz und richtet sich ausschließlich an technisch versierte Anwender. Zur Inbetriebnahme sind Fachkenntnisse in den Bereichen Power over Ethernet (PoE), Schaltungsdesign sowie Systemintegration erforderlich. Das Modul ist nicht ohne Einbau in ein geeignetes Hostgerät und ohne weitere Komponenten einsatzfähig. Bitte beachten Sie die technische Dokumentation des Herstellers unter https://docs.wiznet.io/img/osh/PoE/WIZPoE-S1/wizpoe-p1-datasheet.pdf |
| Dimension | 38 × 16 × 13 mm |
| Operating Temperature | -25 °C to +45 °C |
| PoE Standard | 802.3af |
| PoE Mode | Mode A, Mode B |
| Input Voltage Range | 41 V – 61 V DC |
| Output Voltage | 5 V |
| Output Power | 9 W |
| Isolation | Yes |
| Bridge Rectifier | integrated |
| PoE Controller | SD4954 |
