Surf 5

€11.84 €9.95
Delivery Time
5 - 7 d

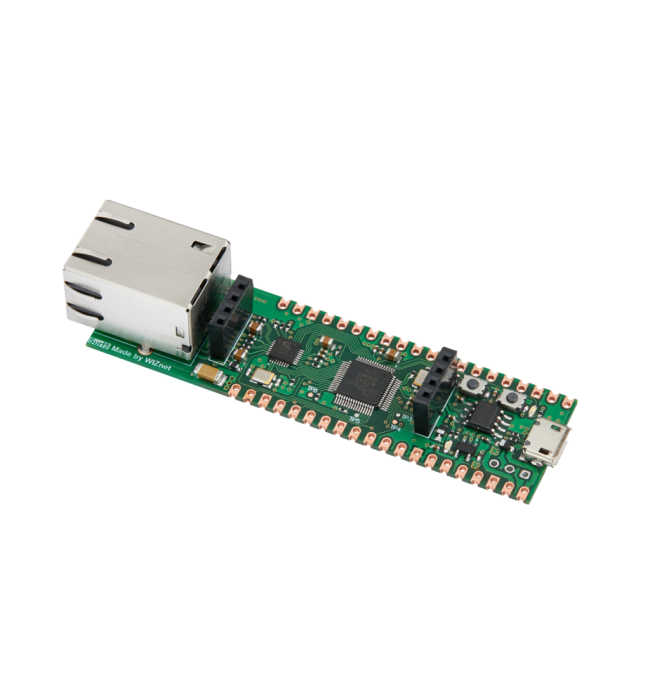

Surf 5 is a microcontroller evaluation board based on the W7500 that can be used with our PoE Modules.

Key Features

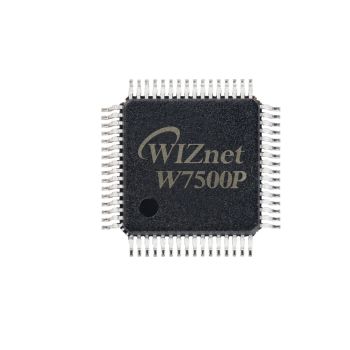

  • W7500 microcontroller
    • ARM Cortex-M0
      • 48MHz maximum frequency
    • Hardwired TCP/IP Core
      • 8 Sockets
      • SRAM for socket: 32 KB
    • PHY
      • IC+(IP101G)
    • Memories
      • Flash: 128 KB
      • SRAM: 16KB
      • ROM for boot code: 6 KB
    • Clock, reset and supply management
      • POR (Power-On Reset)
      • Internal Voltage Regulator : 3.3V to 1.5V
      • 8-to-24MHz external crystal oscillator
      • Internal 8MHz RC Oscillator
      • PLL for CPU clock
    • ADC : 12bit, 8ch, 1Msps (Cannot use more than 2 channels simultaneously)
    • DMA
      • 6-channel DMA controller
      • Peripheral supported: UARTs, SPIs
    • GPIO
      • 34 I/Os (15 IO x 2ea, 4 IO x 1ea)
    • Debug mode
      • Serial Wire Debug (SWD)
    • Timer/PWM
      • 1 Watchdog (32-bit down-counter)
      • 4 Timers (32-bit or 16-bit down-counter)
      • 8 PWMs (32-bit counter/timers with programmable 6-bit prescaler)
    • Communication Interfaces
      • 3 UART (2 UARTs with FIFO and Flow Control, 1 simple UART)
      • 2 SPI
    • Crypto
      • 1 RNG (Random Number Generator): 32-bit random number
    • Package64 LQFP (7×7 mm)
    • Built-in RJ45
    • Built-in LDO
    • Built-in UART to USB
More Information
Manufacturer WIZnet
Network sockets count 8
internal DPRAM buffer memory 32 kB
Protocol IPv4
Core speed 96 MHz
