EVB based on RP2040 and WizFi360-PA

Product Description

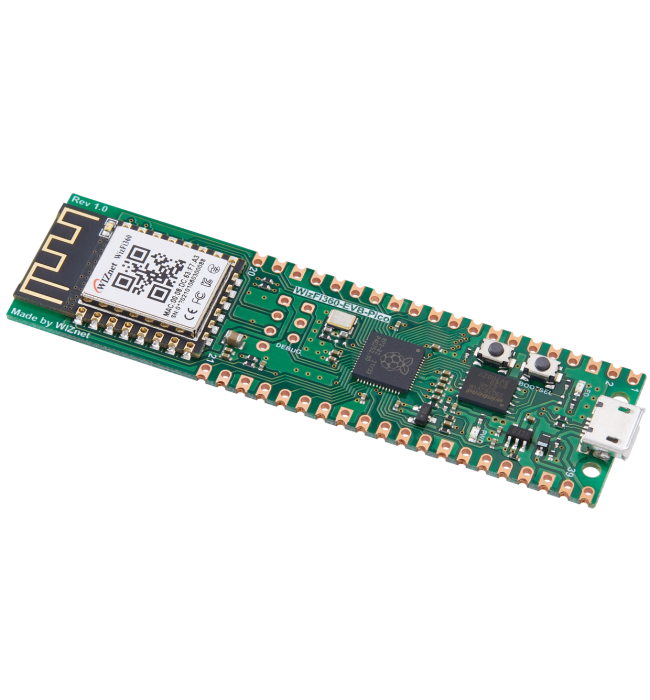

Raspberry Pi Pico EVB combined with the WizFi360-PA

WizFi360-EVB-Pico is based on Raspberry Pi RP2040 and adds Wi-Fi connectivity using WizFi360. It is pin-compatible with the Raspberry Pi Pico board and can be used for IoT Solution development.


  • RP2040 microcontroller with 2MByte Flash
    • Dual-core cortex M0+ at up to 133MHz
    • 264kByte multi-bank high performance SRAM
    • External Quad-SPI Flash with eXecute In Place (XIP)
  • Includes WizFi360-PA
    • Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
    • WiFi 2.4G, 802.11 b/g/n
    • Support Station / SoftAP / SoftAP+Station operation modes
    • Support “Data pass-through” and “AT command data transfer” mode
    • Support serial AT command configuration
    • Support TCP Server / TCP Client / UDP operating mode
    • Support configuration of operating channel 0 ~ 13
    • Support auto 20MHz / 40MHz bandwidth
    • Support WPA_PSK / WPA2_PSK encryption
    • Support built-in unique MAC address and user configurable
    • Industrial grade (operating temperature range: -40 ° C ~ 85 ° C)
    • CE, FCC certification
  • Includes 16M-bit Flash Memory
  • Micro-USB B port for power and data (and for reprogramming the Flash)
  • 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
  • Built-in LDO

Related Links

WIZnet Documentation
WizFi360-EVB-Pico product page on wiznet.io

More Information
Manufacturer WIZnet
Dimension 75 x 21 mm
Memory 16 Mbit Flash
Power Consumption up to 500 mA
Operating Voltage 5 V
Functions S2W (Serial-to-WiFi)
Auto Negotiation No
Network sockets count 8
internal DPRAM buffer memory 32 kB
Wake on Lan No
Power Down Mode Yes
Protocol IPv4
Core speed 96 MHz
Ethernet Speed n/a
