WIZ830MJ
€23.68
€19.90
Delivery Time
5 - 7 d
plug in module with 3in1 chip W5300
Product Description

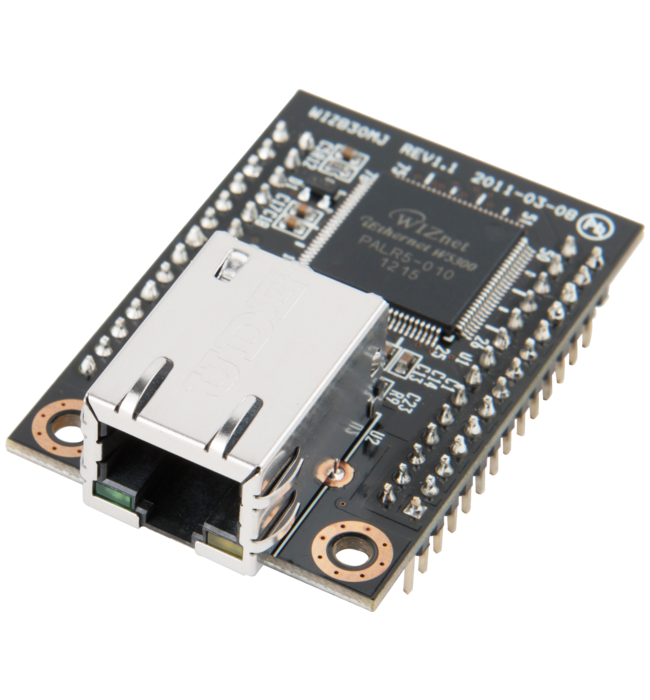

WIZ830MJ is the network module that includes W5300 (TCP/IP & Ethernet PHY) & MAG-JACK (RJ45 with X’FMR) with other glue logics. It can be used as a component and no effort is required to interface W5300 and MAG Jack. The WIZ830MJ is an ideal option for users who want to develop their Internet enabling systems with high network performance.
Features
- Plug-in Network Module
- Usable without H/W design for W5300, transformer & RJ-45
- Fast evaluation for W5300 & MCU in the target board
- Support MCU BUS interface (16/8 bit data bus width)
- Support 8 hardware sockets
- Two PCB through-hole (ø 3.00mm)
- Operation Temperature : -40 ~ 85 ℃
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 53.5 mm x 34 mm |
| Ethernet I/F | MII, PHY |
| Operating Temperature | 0 °C to +70 °C |
| internal DPRAM buffer memory | 128 kB |
| Network sockets count | 8 |
| Protocol | IPv4 |
| PoE possible | No |
