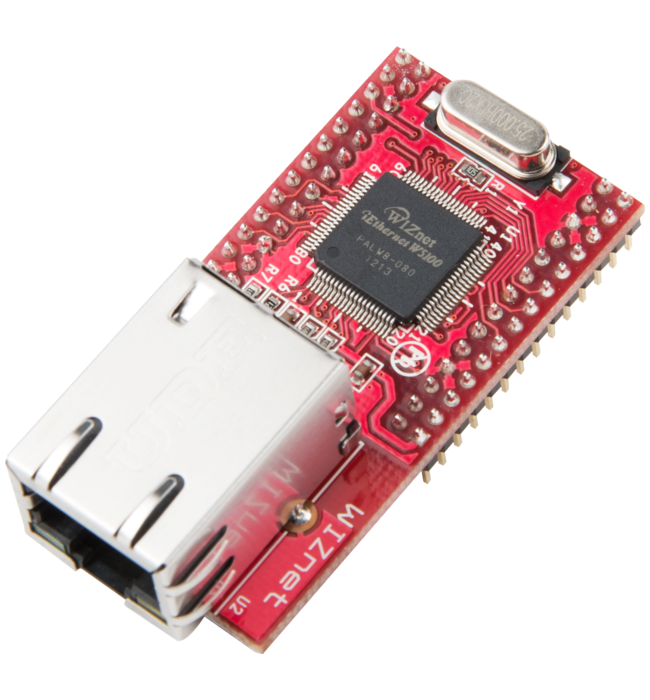

WIZ810MJ
€23.68
€19.90
Delivery Time
5 - 7 d
plug in Module based on 3in1 chip W5100
Product Description
WIZ810MJ is the network module that includes W5100 (TCP/IP, MAC & PHY) & MAG-JACK (RJ45 with X’FMR) with other glue logics. It can be used as a component and no effort is required to interface W5100 & MAG Jack. The WIZ810MJ is an ideal option for users who want to develop their Internet enabling systems rapidly.
Features
- Plug-in Network Module
- Usable without H/W design for W5100, transformer & RJ-45
- Fast evaluation for W5100 & MCU in the target board
- Support MCU BUS & high speed SPI interface
- Support 4 hardware sockets
- Operation Temperature : -40 ~ 85℃
- H/W design feature : refer the comparison table in the below
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 52 mm x 25 mm |
| Ethernet I/F | PHY |
| Operating Temperature | -40 °C to +85 °C |
| Functions | 3-in-1, TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 16 kB |
| Network sockets count | 8 |
| Package | pin module |
| Protocol | IPv4 |
| MCU I/F | SPI |
| PoE possible | No |
| Related Chip/Module | W5100 |
| Ethernet connector | RJ45 |
| pin pitch | 2.00 mm |
| Ethernet Speed | 10/100 |
