WIZ750SR-TTL-EVB
€45.22
€38.00
Delivery Time
2 - 3 d

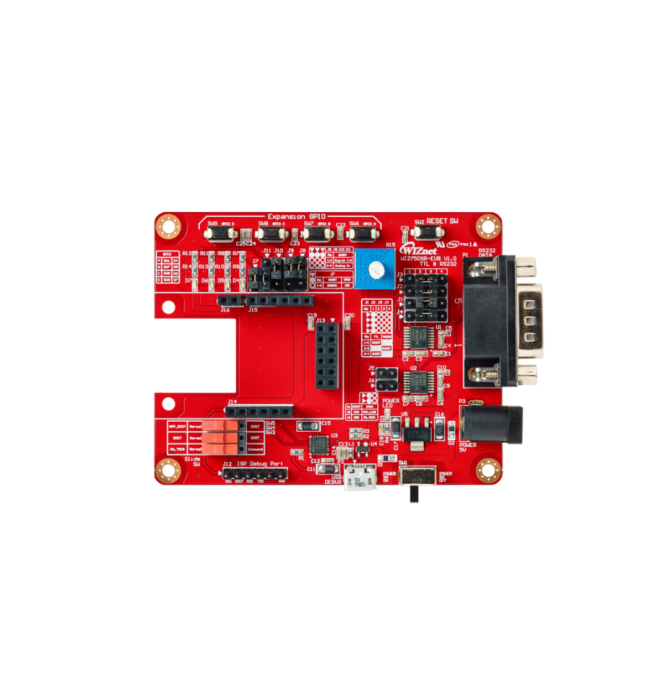

Evaluation Board for the Serial-to-Ethernet module WIZ750SR-TTL
Product Description
WIZ750SR-TTL-EVB is a evaluation board for WIZ750SR.

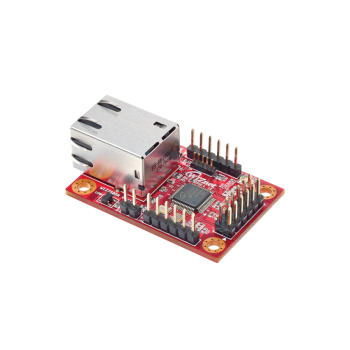

WIZ750SR is the compact sized serial to Ethernet module using W7500P, WIZnet iMCU based on Cortex-M0 MCU core. WIZ750SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment
It supports the serial interface of TTL
Features
- TCP/IP : W7500P
- PHY : Embedded in W7500P
- RJ-45 : BS-RB10005 (Transformer Integrated)
- MCU : Cortex-M0 (W7500) : SRAM : 48K Byte, FLASH-128Kbyte, 6Kbyte Boot ROM and 32KByte Socket SRAM
- Serial : 3.3V LVTTL or RS-232
- Pinout interface
- 6×2 2.54mm Pin Header (Male) 1EA
- 1×6 2.54mm Pin Header (Male) 2EA
- 1×2 2.54mm Pin Header (Male) 1EA
Related Links
WIZnet Documentation
WIZ750SR-TTL-EVB product page on wiznet.io
| Manufacturer | WIZnet |
|---|---|
| Dimension | 45 mm x 30 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| ROM | 128 kB |
| RAM | 48 kB |
| voltage regulator (LDO) | Yes |
| Ethernet Speed | 10/100 |
