WIZ750SR-485
€22.61
€19.00
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
compact size Ethernet to RS-422/-485 converter based on W7500p. Fully compatible with WIZ107SR/WIZ108SR.
Product Description

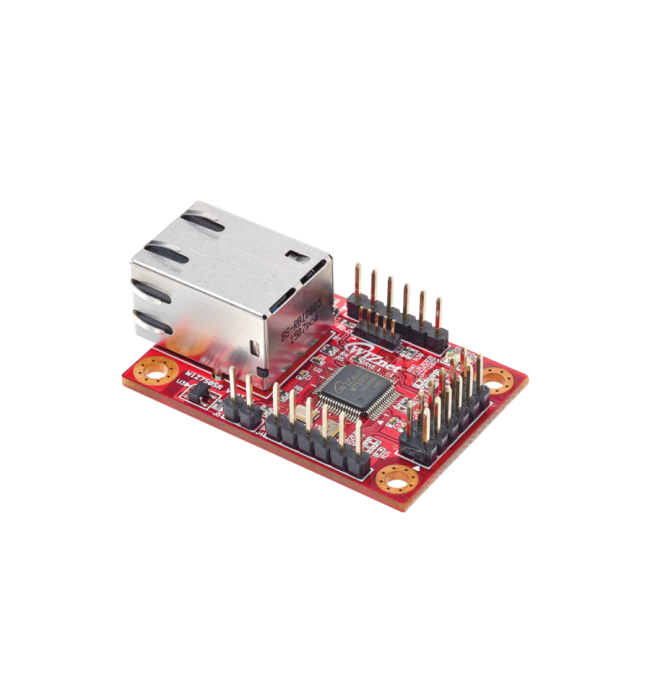

The WIZ750SR is the compact sized serial to Ethernet module using the WIZnet chip W7500P, based on a Cortex M0. The WIZ750SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type and converts back the TCP/IP data received through the network into serial data. The WIZ750SR is the successor of the widely used WIZ107SR/WIZ108SR and incorporates the experience of several years of module development. It complies with industrial temperature standard and supports all relevant serial interface systems (TTL / RS-232 / RS-422/485). WIZ750SR contains an 4-pin GPIO expansion port that can be controlled freely by the user. (analog input or digital in/out)
This module is the RS-422/RS-485 version.
Features
- Hardwired TCP/IP Ethernet functionality
- Serial to Ethernet module based on the W7500p chip
- RJ45 mounted on the PCB already, pin header type module
- RS-422/485 signals: TXD+, TXD-, RXD+, RXD-
- configurable by AT command set and configuration tool
- module settings can be secured with a password
- 10/100 Mbps Ethernet speed, 230 kbps max serial connection speed
- 8 Independent hardware socket
- Internal 32 kBytes memory for TCP/IP packet processing
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 48 mm x 30 mm x 18 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| Operating Voltage | 3.3 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | stand alone PCB |
| Pin count module | 2 x 6, 1 x 2, 1 x 12 and 1 x 5 |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| MCU I/F | I2C |
| Related Chip/Module | W7500P |
| pin pitch | 2.54 mm and 1.27 mm |
| voltage regulator (LDO) | No |
| Ethernet connector | RJ45 |
| Connector Type | header pins |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
