WIZ750SR-232-EVB

€45.22 €38.00
Delivery Time
2 - 3 d
Evaluation Board for the Serial-to-Ethernet module WIZ750SR-232

Product Description

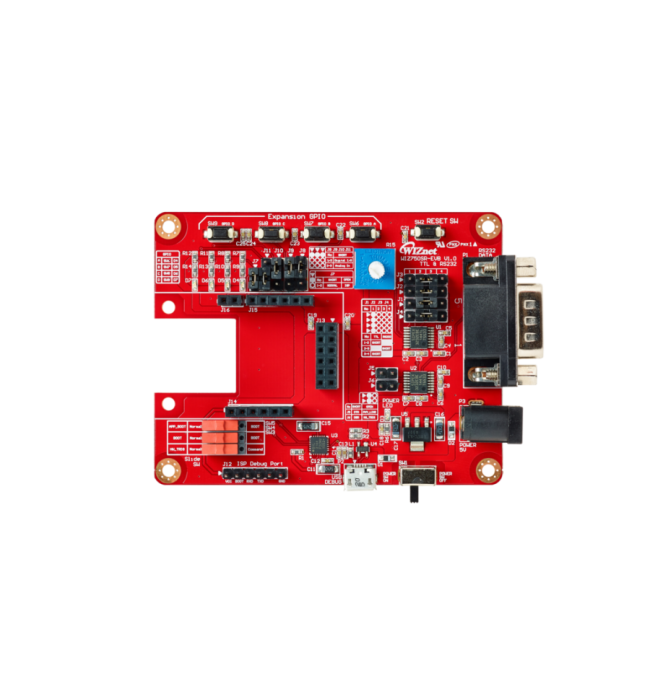

WIZ750SR-RS232-EVB is a evaluation board for WIZ750SR.

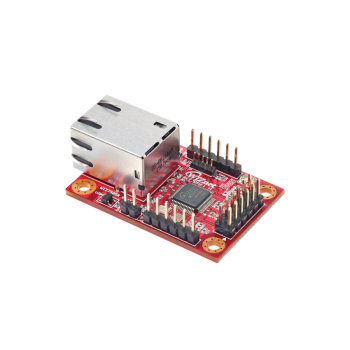

WIZ750SR is the compact sized serial to Ethernet module using W7500P, WIZnet iMCU based on Cortex-M0 MCU core.  WIZ750SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment

It supports the serial interface of RS-232.



Features

  • TCP/IP : W7500P
  • PHY : Embedded in W7500P
  • RJ-45 : BS-RB10005 (Transformer Integrated)
  • MCU : Cortex-M0 (W7500) : SRAM : 48K Byte, FLASH-128Kbyte, 6Kbyte Boot ROM and 32KByte Socket SRAM
  • Serial : 3.3V LVTTL or RS-232
  • Pinout interface
  •   6×2 2.54mm Pin Header (Male) 1EA
  •   1×6 2.54mm Pin Header (Male) 2EA
  •   1×2 2.54mm Pin Header (Male) 1EA

Related Links


WIZnet Documentation
WIZ750SR-EVB product page on wiznet.io

More Information
Manufacturer WIZnet
Dimension 45 mm x 30 mm
Ethernet I/F PHY
Operating Temperature 0 °C to +70 °C
Auto Negotiation Yes
Network sockets count 8
internal DPRAM buffer memory 32 kB
Wake on Lan No
Power Down Mode No
Protocol IPv4
MCU core ARM Cortex M0
ROM 128 kB
RAM 48 kB
voltage regulator (LDO) Yes
Ethernet Speed 10/100
