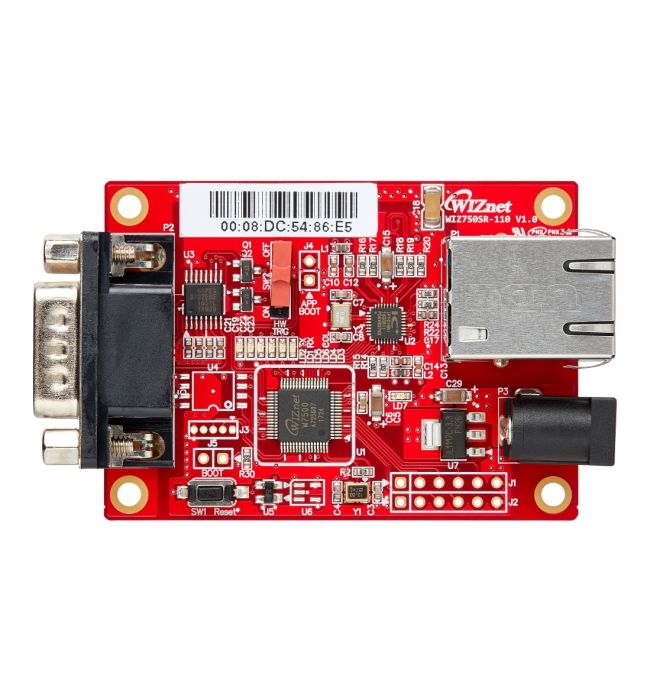

WIZ750SR-110
€26.78
€22.50
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
Serial to Ethernet module with DB9 and RJ45
Product Description
The WIZ750SR-110 is the compact sized serial to Ethernet module using W7500, WIZnet iMCU, cortex-M0. WIZ750SR-110 includes an External IC+ PHY chip. WIZ750SR-110 is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to a serial device. It is pin-compatible with the WIZ110SR.
Features
- Serial to Ethernet Module based on W7500
- Includes an External IC+ PHY chip
- Pin-header type, RJ-45 mounted module
- Serial signals: TXD, RXD, RTS, CTS, GND (optional DSR, DTR)
- Support the configuration method of AT command & Configuration tool program
- Support password function for the security
- 10/100Mbps Ethernet & Max.230kbps serial speed
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 75 mm x 45 mm x 18 mm |
| Ethernet I/F | RJ45 |
| Operating Temperature | -40 °C to +85 °C |
| Operating Voltage | 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | stand alone PCB |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| MCU I/F | I2C |
| Related Chip/Module | W7500 |
| pin pitch | 2.54 mm |
| voltage regulator (LDO) | Yes |
| Ethernet connector | RJ45 |
| Connector Type | DB9 |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
