WIZ550S2E-485-EVB
€45.82
€38.50
Delivery Time: 7 days for quantities in stock. Other quantities on request.
obsolete: Evaluation Board for WIZ550S2E-485, including WIZ550S2E-TTL, WIZ550S2E-485-IB, all necessary cables and a power supply
This product has reached its end of life - parts available until stock is depleted. Please contact us for further details.3

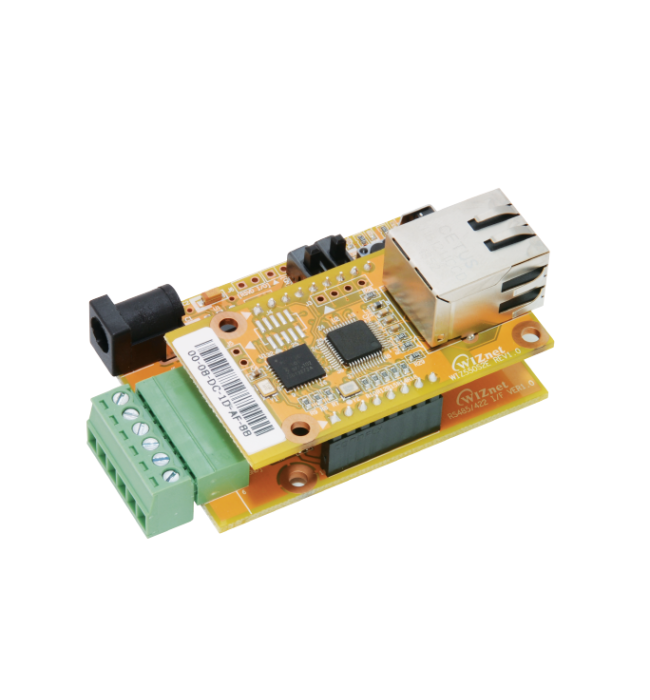

The WIZ550S2E-485-EVB includes the WIZ550S2E-TTL module, it's corresponding Interface Board WIZ550S2E-485-IB, a set of cables and a power supply. With this EVB, it is easily possible to enable a Serial-To-Ethernet functionality based on WIZnet's latest chip, the W5500.
| Dimension | 61 mm x 45 mm |
|---|---|
| Ethernet I/F | RJ45 |
| Operating Temperature | -40 °C to +85 °C |
| Auto Negotiation | Yes |
| Network sockets count | 8 |
| internal DPRAM buffer memory | 32 kB |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| voltage regulator (LDO) | Yes |
| Ethernet Speed | 10/100 |
