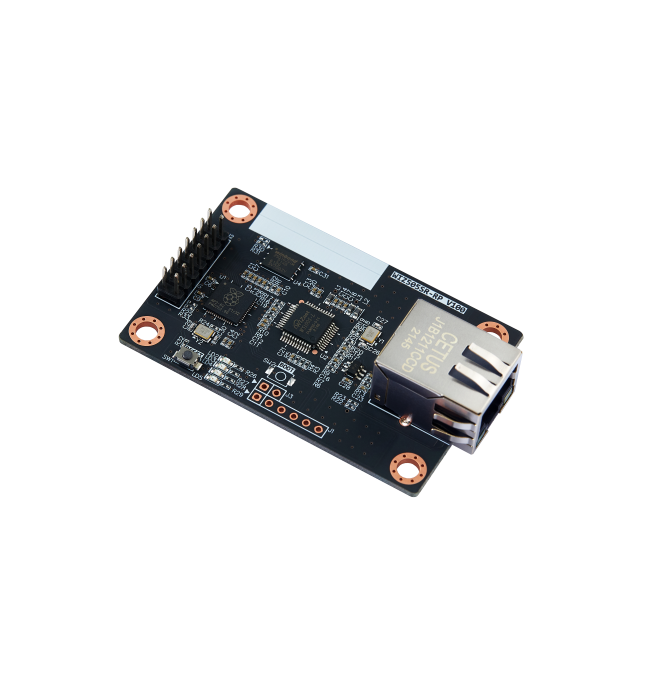

WIZ505SR-RP
€20.47
€17.20
Delivery Time: 5 - 7 d
2.54 mm pitch Serial to Ethernet module based on RP2040 and W5100S
Product Description
The WIZ505SR-RP is a compact sized serial to Ethernet module using the RP2040 MCU with W5100S Ethernet Chip. WIZ505SR-RP is a protocol converter that transmits data sent by serial equipment as TCP/IP data, and converts the TCP/IP data received through the network back into serial data to the serial equipment.
Features
- Serial to Ethernet Module based on RP2040 MCU (TTL level)
- W5100S included
- 10/100Mbps Ethernet & Up to 230kbps serial speed
- 2.54 mm pitch 2x7 pin headers mounted
- Status pins: PHY link status / TCP connection status
- Serial signals (UART/TTL): TXD, RXD, RTS, CTS
- Optional DTR/DSR signals supported (Status pins or DTR/DSR pins selectable)
- Data UART and Debug UART port
- Configuration is possible via serial AT commands or via Configuration tool
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 50 x 30 mm |
| Ethernet I/F | RJ45 |
| Operating Voltage | 3.3 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Package | pin module |
| Wake on Lan | Yes |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Core speed | 96 MHz |
| MCU I/F | I2C, SPI, UART, USB |
| pin pitch | 2.54 mm |
| voltage regulator (LDO) | No |
| Ethernet connector | header pins |
| Connector Type | header pins |
| Ethernet Speed | 10/100 |
| UART (max speed) | 230 k |
| Debug I/F | Yes |
