WIZ505SR-RP-EVB
€11.66
€9.80
Delivery Time: 5 - 7 d

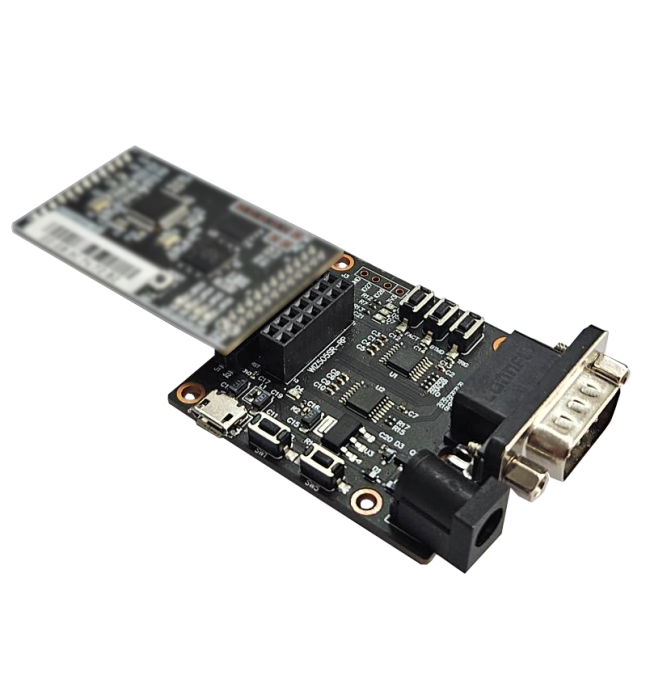

Evaluation Board for the WIZ505SR-RP S2E Module
Evaluation Board for the WIZ505SR-RP Serial-to-Ethernet Module with the W5100S and the RP2040 chip. The module WIZ505SR-RP itself is not included and needs to be added to your order separately.
| Ethernet I/F | RJ45 |
|---|---|
| Operating Voltage | 5 V |
| Functions | 4-in-1, MCU + TCP/IP + MAC + PHY |
| Auto Negotiation | Yes |
| Network sockets count | 4 |
| internal DPRAM buffer memory | 16 kB |
| Package | stand alone PCB |
| Wake on Lan | No |
| Power Down Mode | Yes |
| Protocol | IPv4 |
| MCU core | ARM Cortex M0 |
| Ethernet connector | RJ45 |
| voltage regulator (LDO) | Yes |
