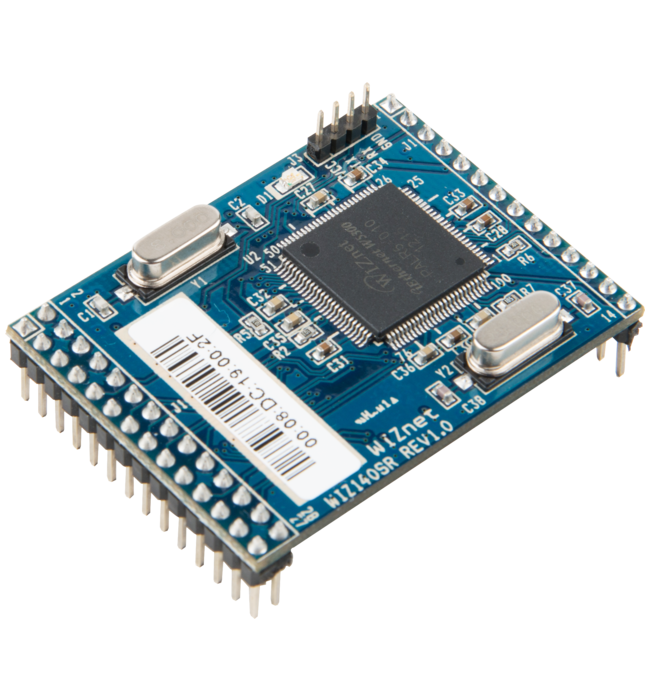

WIZ140SR
€48.79
€41.00
Delivery Time
5 - 7 d
four port TTL level Serial-to-Ethernet module with W5300 and ARM Cortex M3 MCU
Product Description
WIZ140SR is an embedded module based on WIZnet W5300 & ARM Cortex-M3. WIZ140SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
Features
- Serial to Ethernet Module based on W5300 & Cortex-M3
- Pin-header mounted module
- Serial signals : TXD, RXD, RTS, CTS, GND signals (4 UART/RS-232C)
- Support the configuration method of AT command & Configuration tool program
- 10/100Mbps Ethernet & Max.115.2kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Related Links
| Manufacturer | WIZnet |
|---|---|
| Dimension | 48.3 mm x 35.6 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | ARM Cortex M3 |
| Core speed | 96 MHz |
| voltage regulator (LDO) | No |
