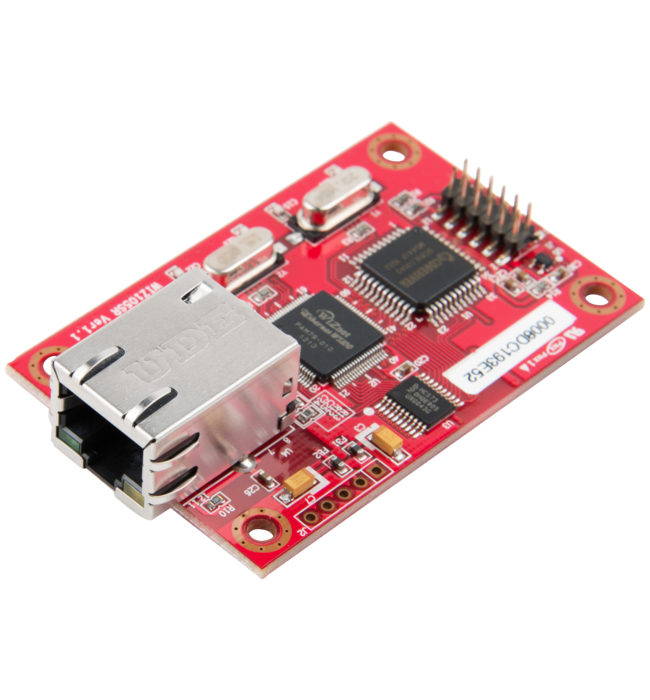

WIZ105SR
€28.80
€24.20
Delivery Time: 7 days for quantities in stock. Backordered pieces: 4 weeks
one port TTL level Serial-to-Ethernet "S2E" Gateway Module based on the 3in1 chip W5100.
Product Description
WIZ105SR is the serial to Ethernet module using W5100 & 8051 MCU. WIZ105SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
Features
- Serial to Ethernet Module based on W5100 & 8051
- Pin-header type, RJ-45 mounted module
- Serial signals : TXD, RXD, RTS, CTS, GND
- Support the configuration method of AT command & Configuration tool program
- 10/100Mbps Ethernet & Max.230kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Related Links
| Manufacturer / Hersteller | WIZnet Korea |
|---|---|
| Dimension | 40 mm x 62 mm |
| Ethernet I/F | PHY |
| Operating Temperature | 0 °C to +70 °C |
| internal DPRAM buffer memory | 32 kB |
| Network sockets count | 8 |
| Auto Negotiation | Yes |
| Wake on Lan | No |
| Power Down Mode | No |
| Protocol | IPv4 |
| MCU core | 8051 |
| Core speed | 96 MHz |
| voltage regulator (LDO) | No |
